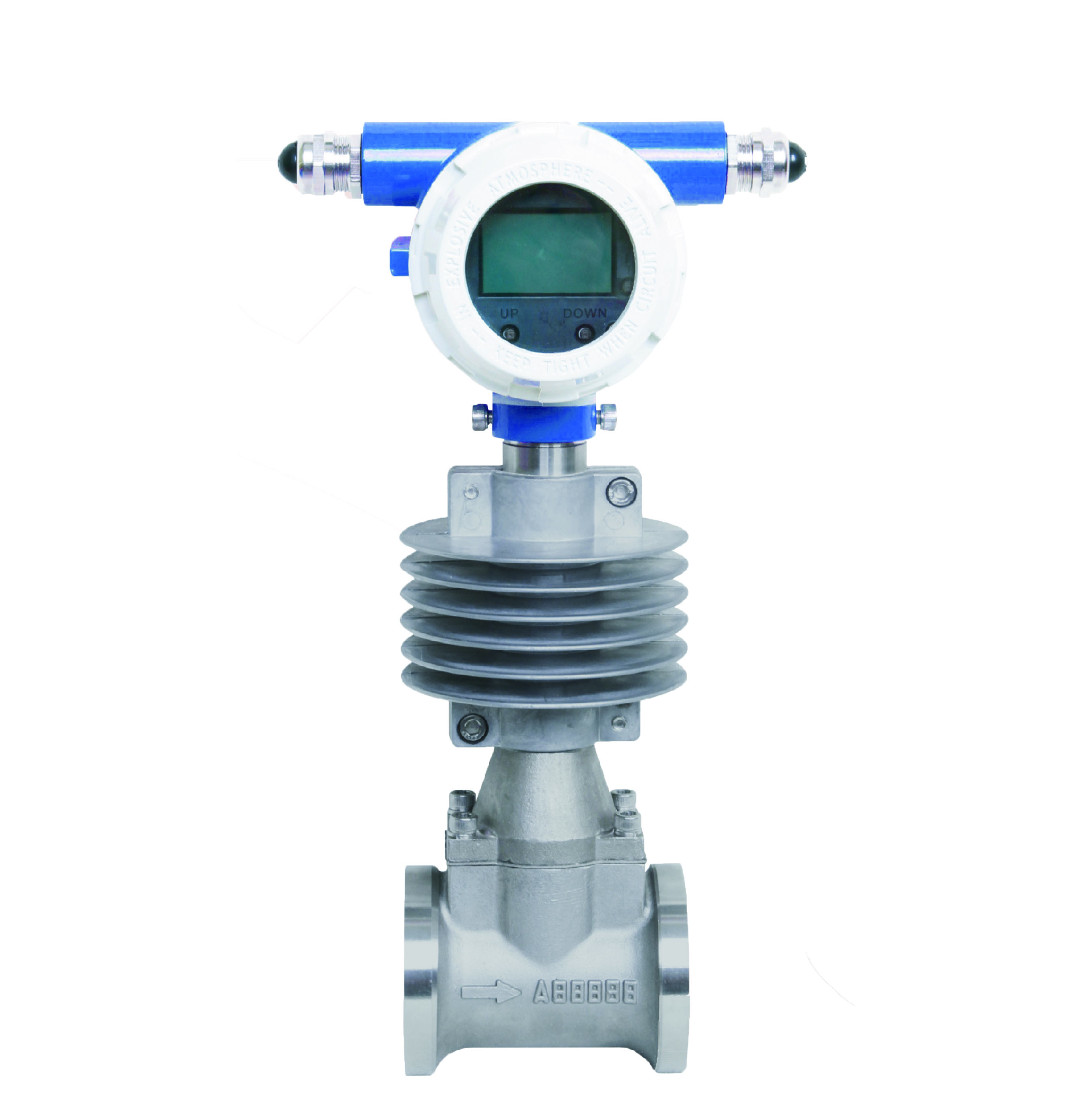

HFVT Vortex Flowmeter

• Economic flowmeter design
• Flange or space-saving sandwich (wafer) version (up to DN100 / 4")
• Advanced technology for signal filtering (AVFD Advanced Vortex Frequency Detection)
• Optional version enables cost-saving installation without expensive pipeline reduction
• Robust construction (IP65/IP68)

Availability:

Quantity:



Inquire Add to Basket

Model:
HFVT
Brand:
ZYZL
Code:
ZYZL-HFVT

Vortex Flowmeter Gas flow measurement Liquid flow measurement Steam flow measurement Cost-effective Vortex flowmeters Economic flowmeter design Three-wire system flow sensor Two-wire system transmitter (4~20mA) Advanced Vortex Frequency Detection Water-proof type IP68

Description

Specifications

Dimension

Ordering Code

Download

Product Description

The HFVT is a Vortex flowmeter for basic utility applications in all industries. The 2-wire device is the ideal choice when it comes to reliable flow measurement of conductive and non-conductive liquids, (wet) gases or steam where high accuracy is not required. The flowmeter features the robust Vortex technology of the HFVT product series, . This makes it one of the most cost-effective Vortex flowmeters in the market. This Vortex flowmeter is also equipped with the field-proven Advanced Vortex Frequency Detection (AVFD) technology for signal filtering, allowing stable measurements even under demanding process conditions.

Application

Steam applications: Determination of volume or mass flow under stable operating conditions

Gas applications: Determination of volumetric or nominal flow rates under stable operating conditions for gas, wet gas and gas mixtures

Liquid applications: Determination of volumetric flow rates of conductive and non-conductive liquids

Benefits

• Economic flowmeter design
• Flange or space-saving sandwich (wafer) version (up to DN100 / 4")
• Advanced technology for signal filtering (AVFD Advanced Vortex Frequency Detection)
• Optional version enables cost-saving installation without expensive pipeline reduction
• Robust construction (IP65/IP68)

Nominal diameter (mm)	25,40,50,65,80,100,125,150,200,250,300,(300～1000 plug-in)
Nominal pressure (MPa)	DN25-DN200 4.0(>4.0 order by agreement) DN250-DN300 1.6(>1.6 order by agreement)
Medium temperature (℃)	Piezoelectric type:-40～260,-40～320; Capacitance:-40～300, -40～400,-40～450(order by agreement)
Body material	1Cr18Ni9Ti,(order by agreement if need other material)
Vibrating acceleration	Piezoelectric type:0.2g Capacitance:1.0～2.0g
Accuracy	±1%R,±1.5%R,±1FS Plug-in:±2.5%R,±2.5%FS
Range ratio	1:6～1:30
Power voltage	Sensor:+12V DC,+24V DC Transmitter:+12V DC ,+24V DC Battery supply feed:3.6V battery
Output signal	Square wave pulse (non- battery supply feed):high level≥5 low level≤1V current:4～20mA
Pressure loss coefficient	JB/T9249 Cd≤2.4
Explosion-proof sign	Intrinsic safety type:ExdⅡia CT2-T 5Explosive-proof type:ExdⅡCT2-T5
Enclosure degree	Normal type IP65 Water-proof type IP68
Environment condition	Temp 20℃～55℃ Relative humidity 5%～90% Atm press 86～106kPa
Medium	Gas,liquid,steam
Transmission range	Three-wire system flow sensor:≤300m; electric sign of two-wire system transmitter (4~20mA):load resistance≤750Ω

HFVT

HFVT	Vortex Street Meter Sensor
TEST WAY	B	piezoelectric transducer
TEST WAY	E	Capacitance sensor
Joint way	1	full package type flanged joint type
	2	full package type flanged installing type
	3	plug-in type simple plug-in
	4	plug-in type ball valve plug-in
Test medium	2	liquid
	3	gas
	4	vapor
Inside nominal diameter	02 …	DN25(Unit:mm) …
Inside nominal diameter	30	DN300
Service environment	P	ordinary type
Service environment	B	explosion proof type
Output signal	1	output pulse
	2	4～20mA current output,liquid-crystal display
	3	RS-485 communication
	4	battery supply feed,without Temp, get pressure
	5	Tem-pre system,4～20mA current output type
	6	Tem-pre system,battery supply feed type
Model selection	E.g.:HFVT E2405-P2 full package type capacitance vortex street meter, flanged installing type joint,medium is vapor drift diameter of meter is DN50,ordinary 4～20mA current signal output

Inside nominal diameter DN mm	25	32	40	50	65	80	100	125	150	200	250
Sign NO.	02	03	04	05	06	08	10	12	15	20	25
Inside nominal diameter DN mm	300	350	400	450	500	600	700	800	1000	1200	1500
Sign NO.	30	35	40	45	50	60	70	80	A0	A2	A5
