Electromagnetic Flowmeter Project Details for HVAC

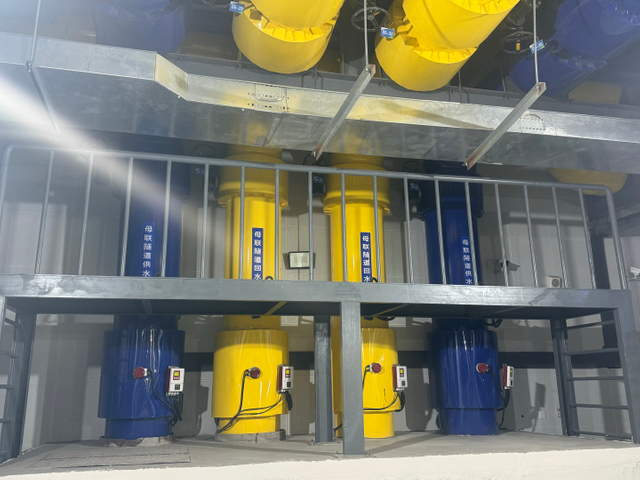

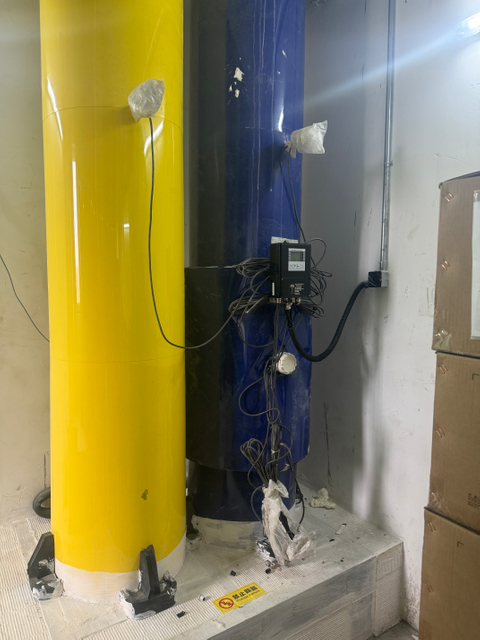

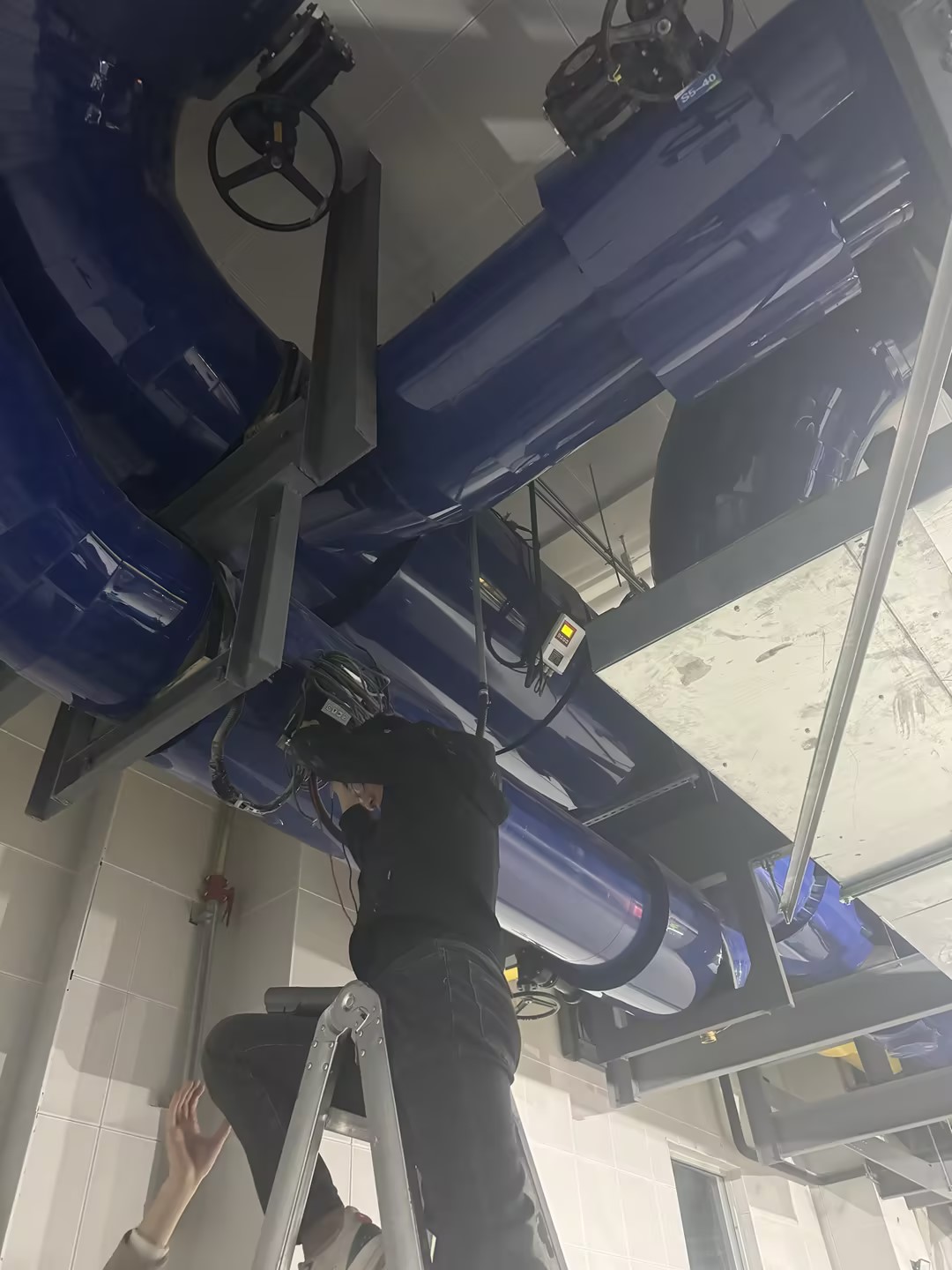

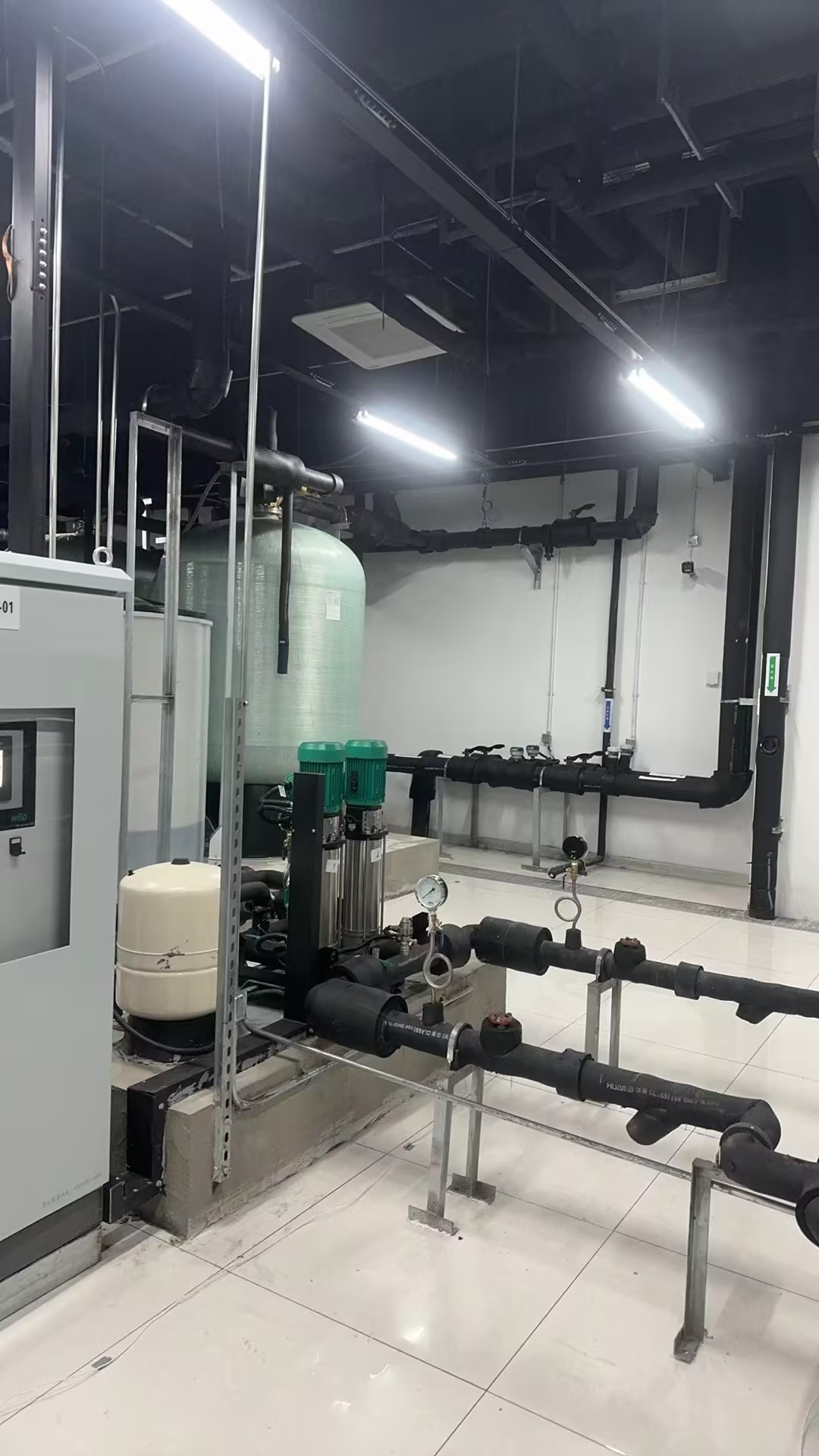

Description: This electromagnetic flowmeter project involves an HVAC system for a telecom company's data center.
Challenge: The water-cooled HVAC system effectively absorbs and dissipates substantial heat loads by leveraging water's high specific heat capacity and thermal conductivity, ensuring stable data center operations.
Result: ZYZL-HFMG electromagnetic flow meters are designed for precise flow measurement in cooling/heating water circuits, significantly reducing the electricity consumption and enhancing the efficiency of cooling, heating and ventilatory.

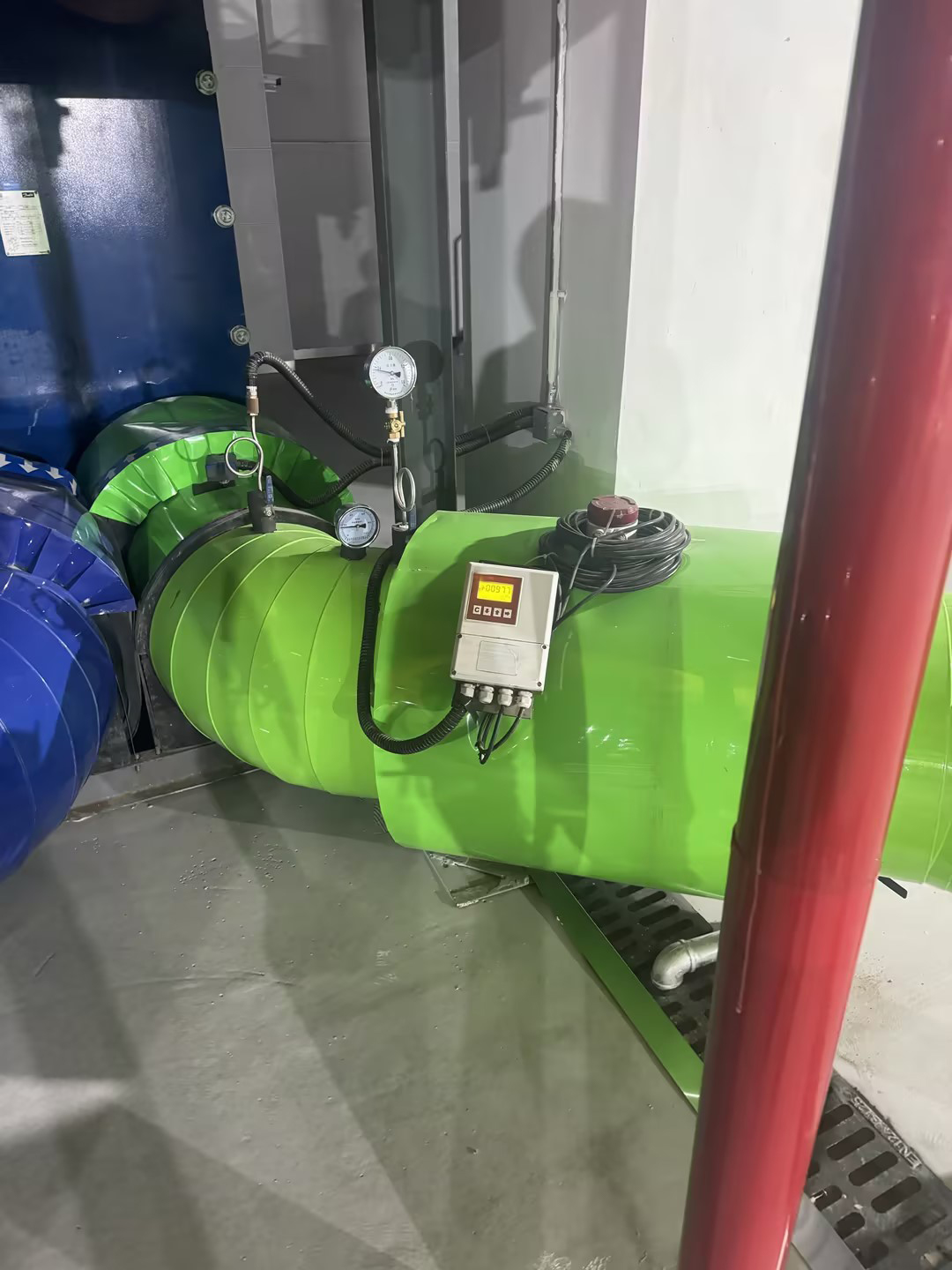

The Application of Electromagnetic Flowmeter in HVAC
Applicable Product

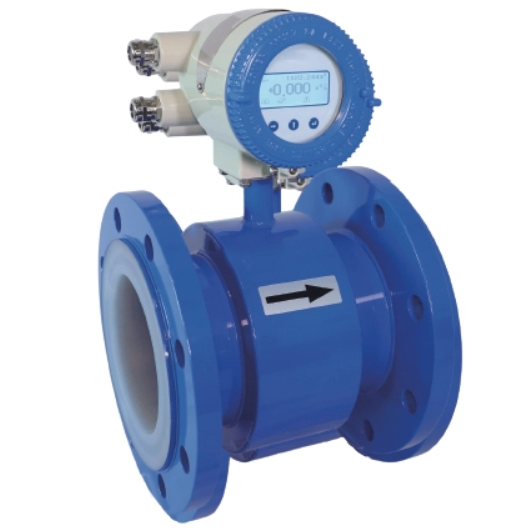

ZYZL-HFMG electromagnetic flowmeter
Main Features
• ±0.3% accuracy • IP65/IP68 protection grade • Compact design with multiple process connection options • Real-time flow monitoring for optimal system balance. • Customizable solutions and simplified installation procedures ensure operational reliability across critical infrastructure applications.
● Accurate mass flow, volume flow, density and temperature measurement, gas mass flow measurement. ● Double U-type measuring tube with high sensitivity. ● The transmitter uses high-performance microprocessor, OLED display, and the parameters are convenient and fast. ● The transmitter has the self-test and self-diagnosis functions. ● Two-way measurement. ● The measurement is not affected by the changes in the fluid density, viscosity, and temperature. ● No installation and environmental impact, to maintain long-term stability. ● Simple installation, no need for straight pipe section and rectification. ● High temperature, ultra-low temperature, high pressure type applications. ● The Ex explosion-proof type which can be used in dangerous places.
High-temperature flowmeter for process applications with a compact, easily accessible transmitter, HFMG is dedicated to chemical and process applications with corrosive liquids and highest medium temperatures. With its compact transmitter HFMG offers a high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options.
• Economic flowmeter design • Flange or space-saving sandwich (wafer) version (up to DN100 / 4") • Advanced technology for signal filtering (AVFD Advanced Vortex Frequency Detection) • Optional version enables cost-saving installation without expensive pipeline reduction • Robust construction (IP65/IP68)
Used in hydraulic Air compressor, Water treatment，Environmental and HVAC industry. Pressure range: from 0~60 Bar (Gauge or Absolute) Optional output: 4~20mA, 0~5VDC, 0.5~4.5VDC, 0~10VDC
High precision, high stability; Small size, light weight Strong anti-interference, good long-term stability Wide measuring range, can measure absolute pressure, gauge Multiple process connection and electrical connection options Suitable for mass production, economic and reliable
Used in hydraulic process control, aviation and aerospace, auto industry, medical equipment and hydraulic piping system. Pressure range: from 0~1000 Bar Optional output: 4~20mA, 0~5Vdc, 0~10Vdc, 0.5~4.5Vdc etc Wetted parts: SUS304, SUS316
