Applications for Pressure Sensor
·HVAC
·Air compressor
·Water treatment
·Environmental
·Plastic and rubber injection presses
·Presses and metal working machinery
·Automatic testing system
·Test Equipment
·Hydraulic and pneumatic equipment
Introduction of Pressure Sensor

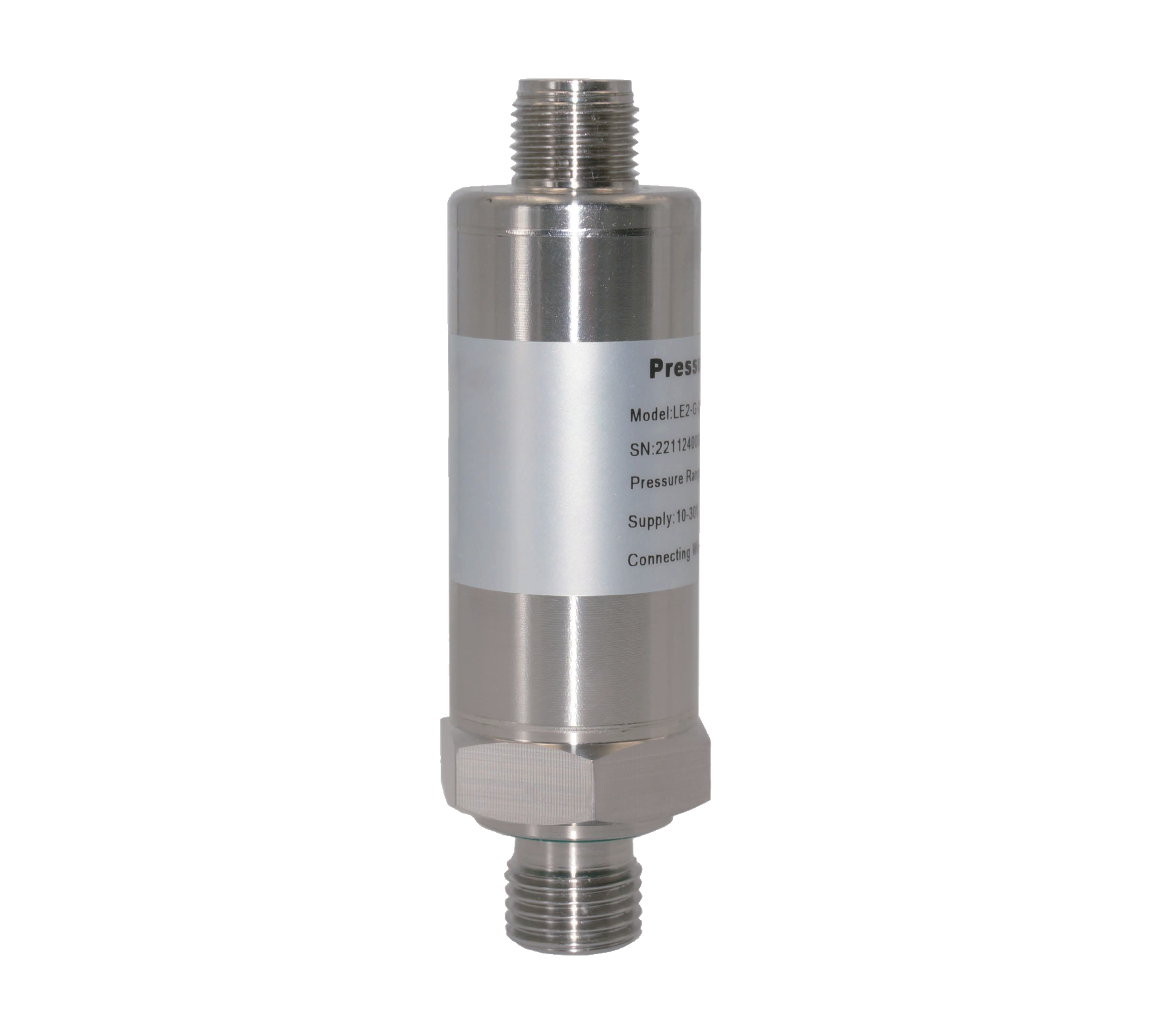

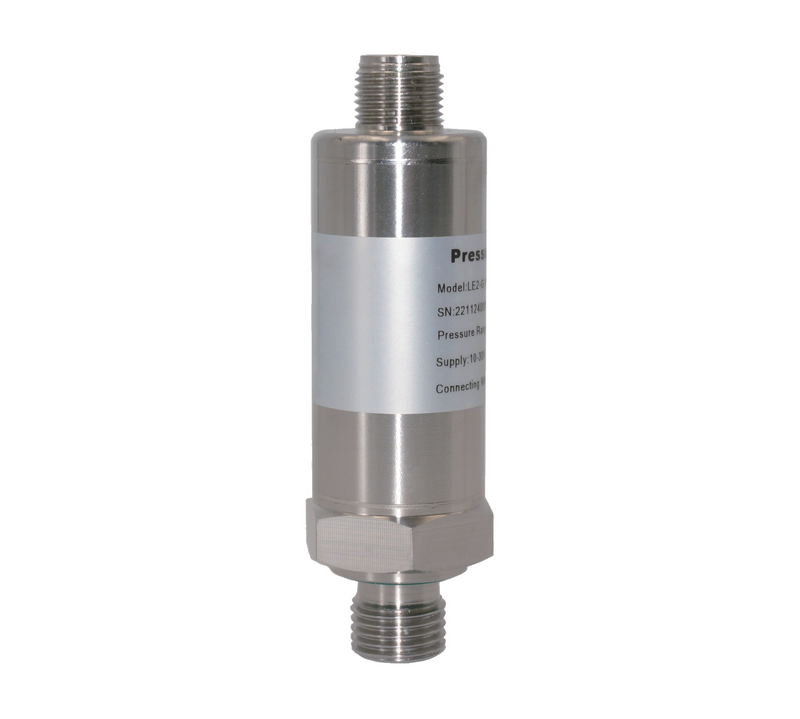

ZYZL-HLE2 Silicon Piezoresistive Pressure Sensor can be transferred liquid or gas pressure into the standard electrical output signal 4~20mA, 0~5VDC, 0~10VDC. HLE2 pressure sensor is produced by build-in a piezoresistive pressure sensor into stainless steel housing with pressure ports.
The product is an electronic device that converts a physical variable (pressure) into an electrical signal (current or voltage) that can be read or acquired by various control, measurement and adjustment devices. HLE2 applies laser trimming hybrid compensates transducer zero, span and so on, is widely used for pressure calibration devices, auto mobile, plastic and rubber injection presses, presses and metal working machinery, industrial measurement, and HVAC.
Special features of Pressure Transducer
·Wetted parts apply stainless steel ensure excellent corrosion resitance
·12~30VDC wide operating voltage range
·Standard optional analog output 4~20mA, 0~5VDC, 0~10VDC
·Build-in silicon oil filling sensor core
·DIN 43650 Plug (Hirschmann)
