Industrial process monitoring for lithium-ion battery industry
Description: This is a production line total sensor solution and industrial process monitoring for Chinese biggest lithium-ion battery manufacturer. The end user’s product line covers mobile electronic devices, new energy electric vehicles, wind and solar power generation, and energy storage systems.
ZYZL provided pressure sensors, temperature sensors, humidity sensors and flowmeters to ensure accurate monitoring and safe production processes. Challenge:
Strict explosion-proof requirements for flammable and explosive chemical substances.
Lithium-ion battery production environment requires precise measurement of pressure, flow, temperature, and humidity.
Downtime during production processes is not allowed.
Result:
ZYZL products are compatible with various chemical substances in customer’s production lines, as well as meet with customer’s explosion-proof requirements.
Case Video
Applicable Product

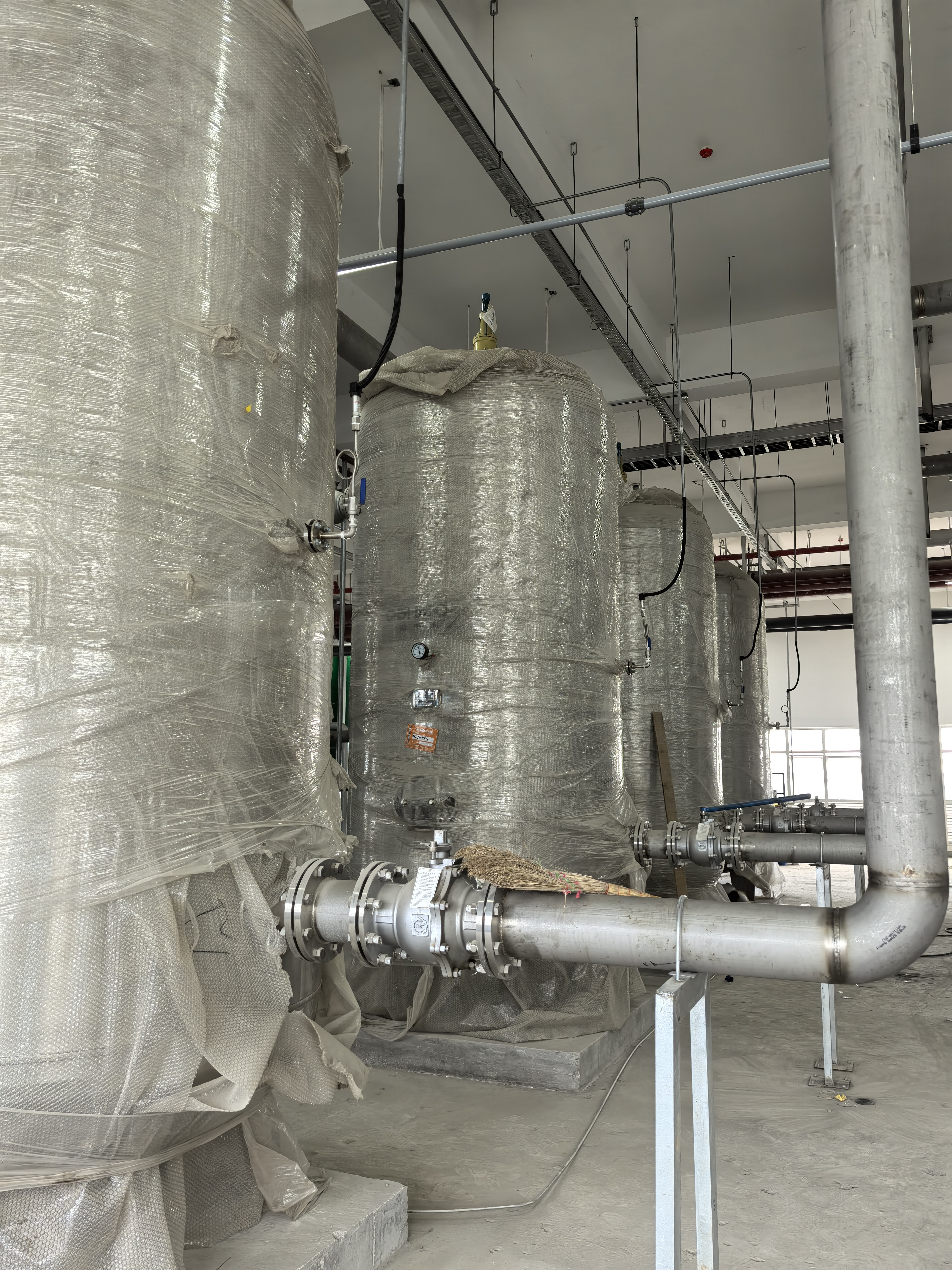

ZYZL-HLE2 Pressure Sensor

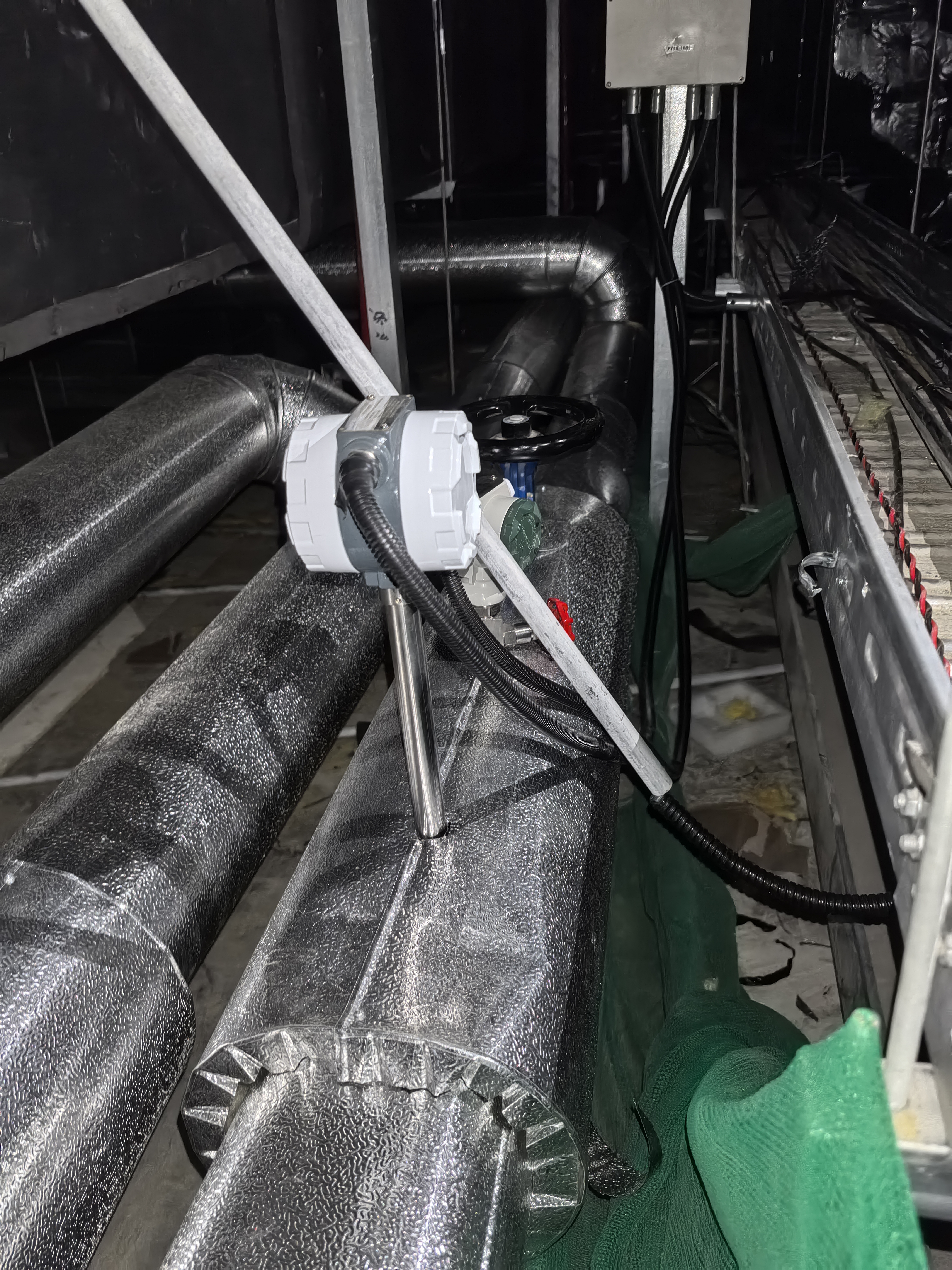

ZYZL-HTET Temperature Sensor

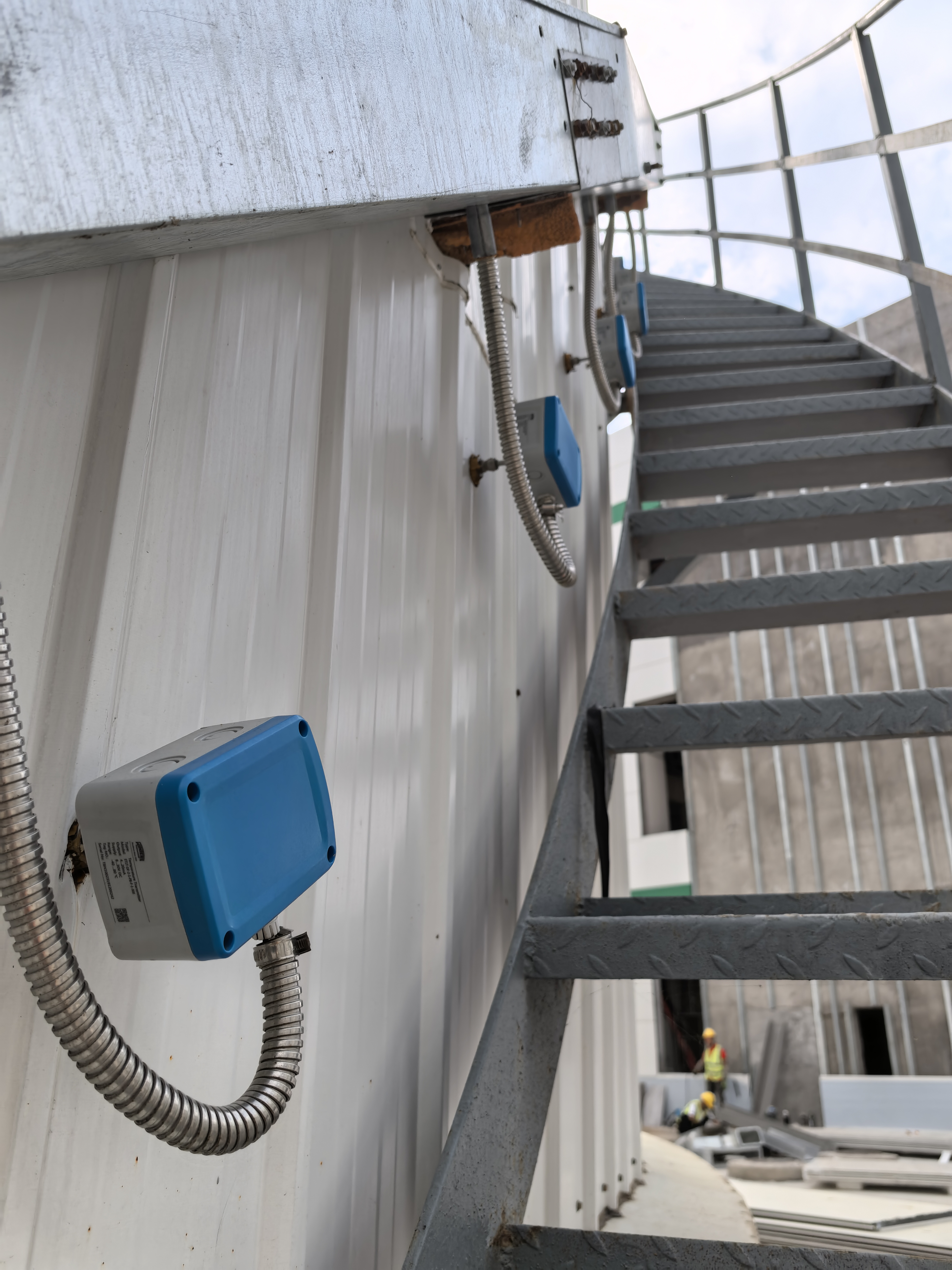

ZYZL-HRH Temperature and Humidity Sensor

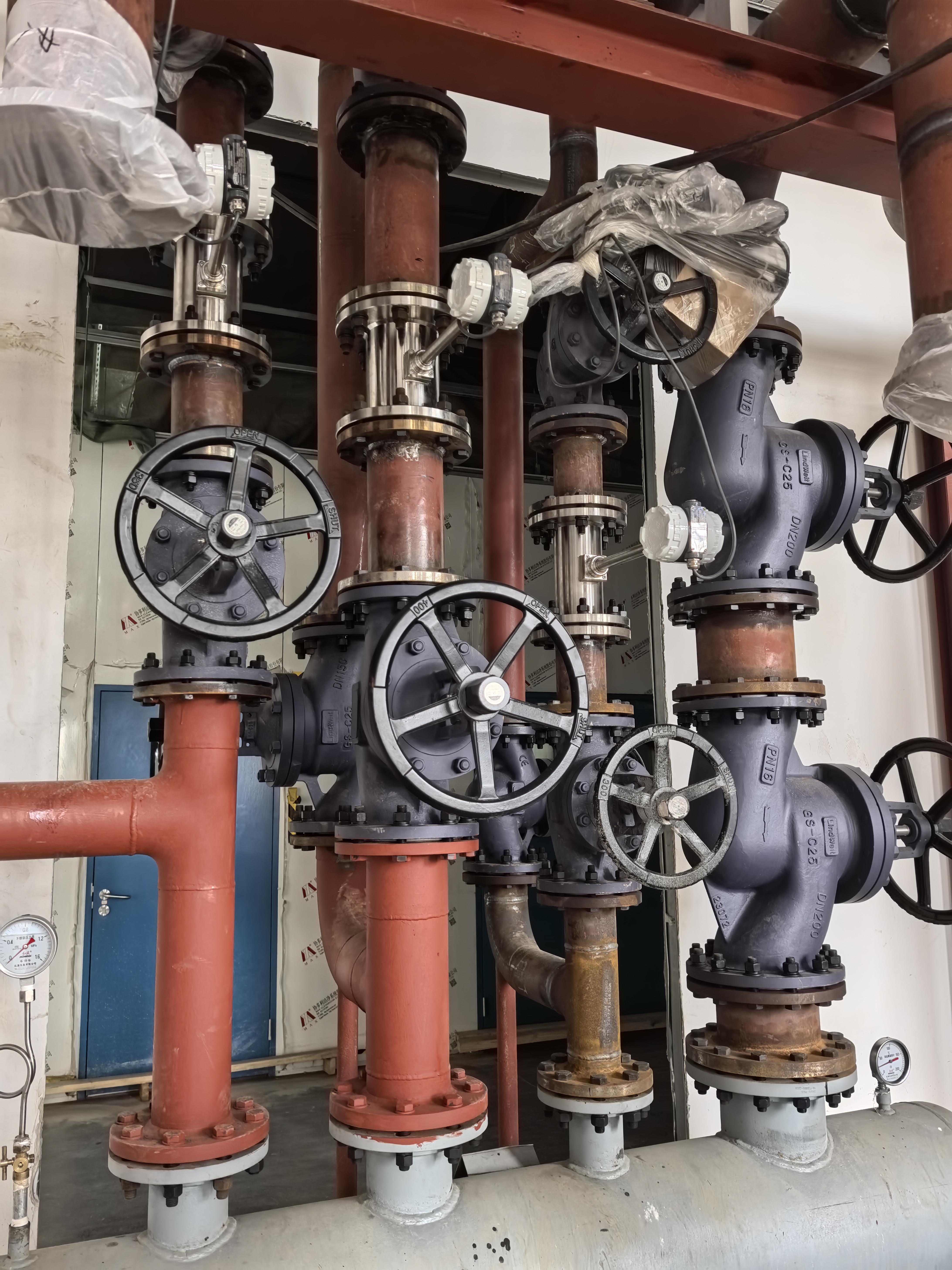

ZYZL-HFTM Thermal Gas Mass Flow Meter
Main Features
Accurate pressure, mass flow, temperature and humidity measurement
Apply to gas mass flow measurement
Featuring the high-performance microprocessor and LED display that ensure easily operated
• Economic flowmeter design • Flange or space-saving sandwich (wafer) version (up to DN100 / 4") • Advanced technology for signal filtering (AVFD Advanced Vortex Frequency Detection) • Optional version enables cost-saving installation without expensive pipeline reduction • Robust construction (IP65/IP68)
High-temperature flowmeter for process applications with a compact, easily accessible transmitter, HFMG is dedicated to chemical and process applications with corrosive liquids and highest medium temperatures. With its compact transmitter HFMG offers a high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options.
Pressure technology solutions include capacitive, piezoresistive and other sensors to provide essential process data in differential, gage and absolute pressure applications. These sensors measure pressure, level, flow and derivatives by physically responding to the changes in process pressure, converting the physical movement into an electrical signal.
Used in hydraulic process control, aviation and aerospace, auto industry, medical equipment and hydraulic piping system. Pressure range: from 0~1000 Bar Optional output: 4~20mA, 0~5Vdc, 0~10Vdc, 0.5~4.5Vdc etc Wetted parts: SUS304, SUS316
Precision pressure measurement from 0 ... 10 to 0 ... 1000 bar
Integrated robust 316L stainless steel housing no welding line, no O-ring, no risk of leakage
Made for hydrogen applications such as hydrogen electrolyzer, pressure monitoring of distribution network, storage station, compressor, dryer, H2-refuelling station and H2-combustion power plant
Thick film sensor to prevent hydrogen evolution or hydrogen extraction
