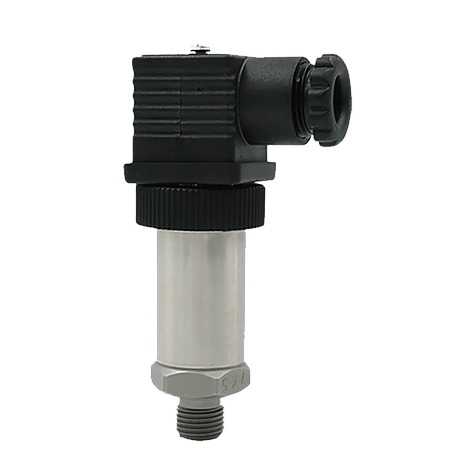

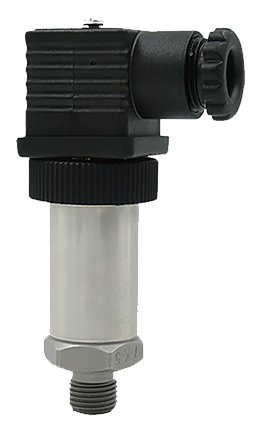

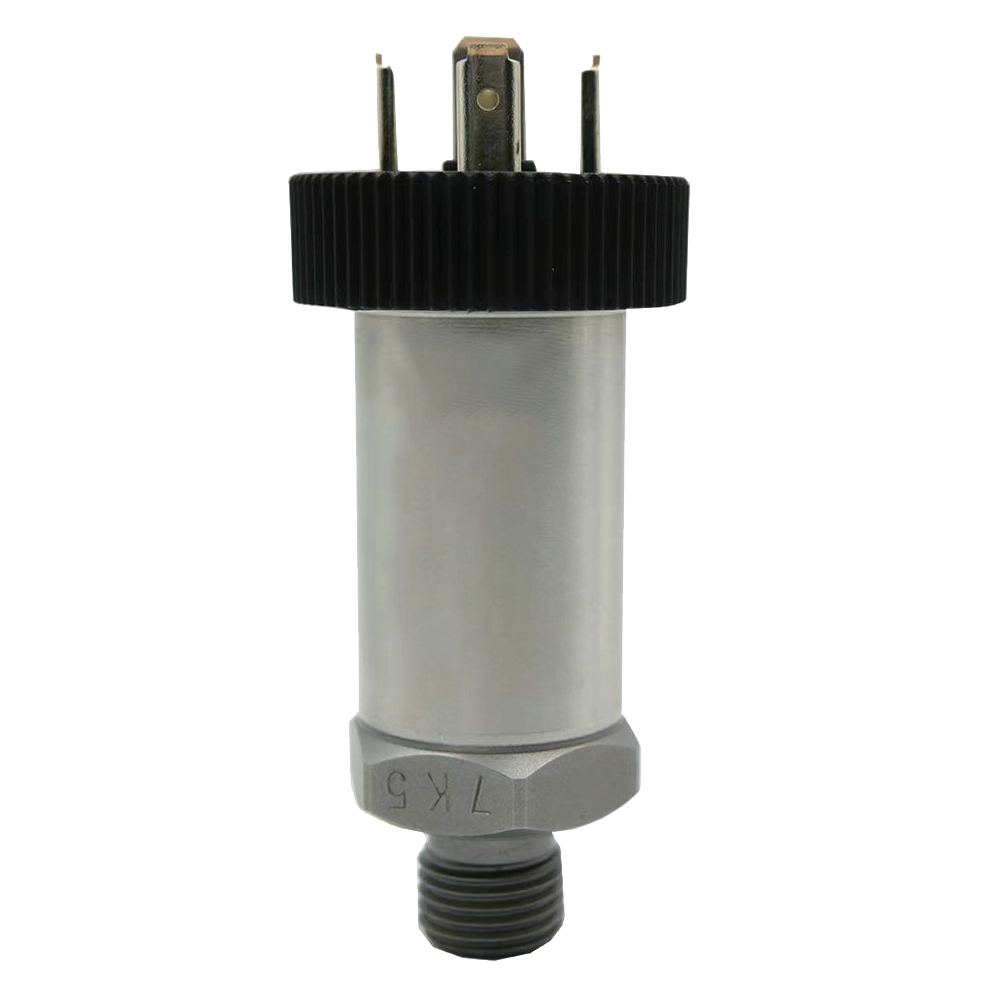

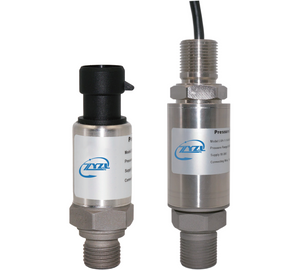

HLVC Heavy Duty Hydraulic Real-time Robust Pressure Sensor

Used in hydraulic process control, aviation and aerospace, auto industry, medical
equipment and hydraulic piping system.
Pressure range: from 0~1000 Bar
Optional output: 4~20mA, 0~5Vdc, 0~10Vdc, 0.5~4.5Vdc etc
Wetted parts: SUS304, SUS316

Availability:

Quantity:



Inquire Add to Basket

Model:
HLVC
Brand:
ZYZL
Code:
ZYZL-HLVC

High Precision Pressure Sensor Hydraulic Pressure Sensor Heavy duty Pressure Sensor Real-time Pressure Sensor Impact-resistant Pressure Sensor Hydraulic pressure measurement Hydraulic process control Construction Hydraulic Machinery Hydraulic Oil measurement Hydraulic Oil Alarms

Description

Specifications

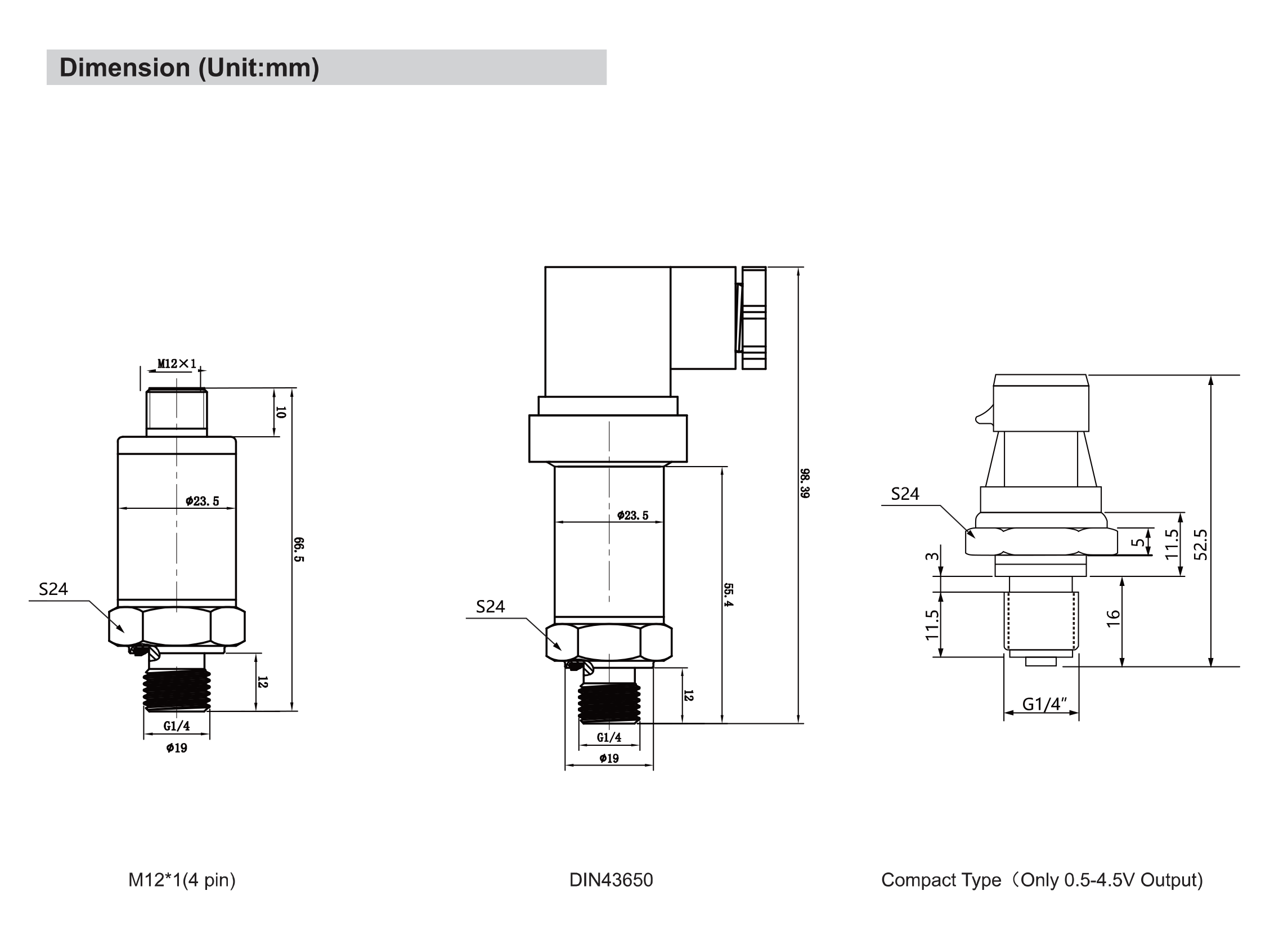

Dimensions

Order Guide

Download

Applications for Pressure Sensor

·OEM Customer

·Hydraulic system

·Mechanical machine

·Compressor

·Hydraulic process control

·Measure and control of petroleum

·Aviation and aerospace

·Auto industry, medical equipment and hydraulic piping system

Introduction of Pressure Sensor

ZYZL-HLVC pressure sensor has a pressure chamber which is made of single complete stainless-steel piece, and all-metal sealing structure. The pressure transmitter uses ZYZL glass micro melting and metal isolation diaphragm technology and has specially designed structure. It adopts the overall digital calibration and temperature compensation.

Special features of Pressure Sensor

·Wetted parts apply stainless steel to ensure excellent corrosion resistance

·EMC, temperature, humidity test

·Fatigue strength is more than 10 million times(10%F.S.~100%F.S.)

Accuracy(25℃)	0.5FSO / 0.25%FS per BFSL
Output signal	4-20mA 2wires 0-10V 3wires 0-5V 3wires 0.5-4.5V 3wires
Supply voltage	12-30VDC,24VDC remmended
Temperature	Compensation range：-20...85℃ Medium：-40...125℃ Enviroment：-40...85℃ Storage：-40...125℃
Thremo drift	Zero Point：0.02%FS/℃ Full Scale：0.02%FS/℃

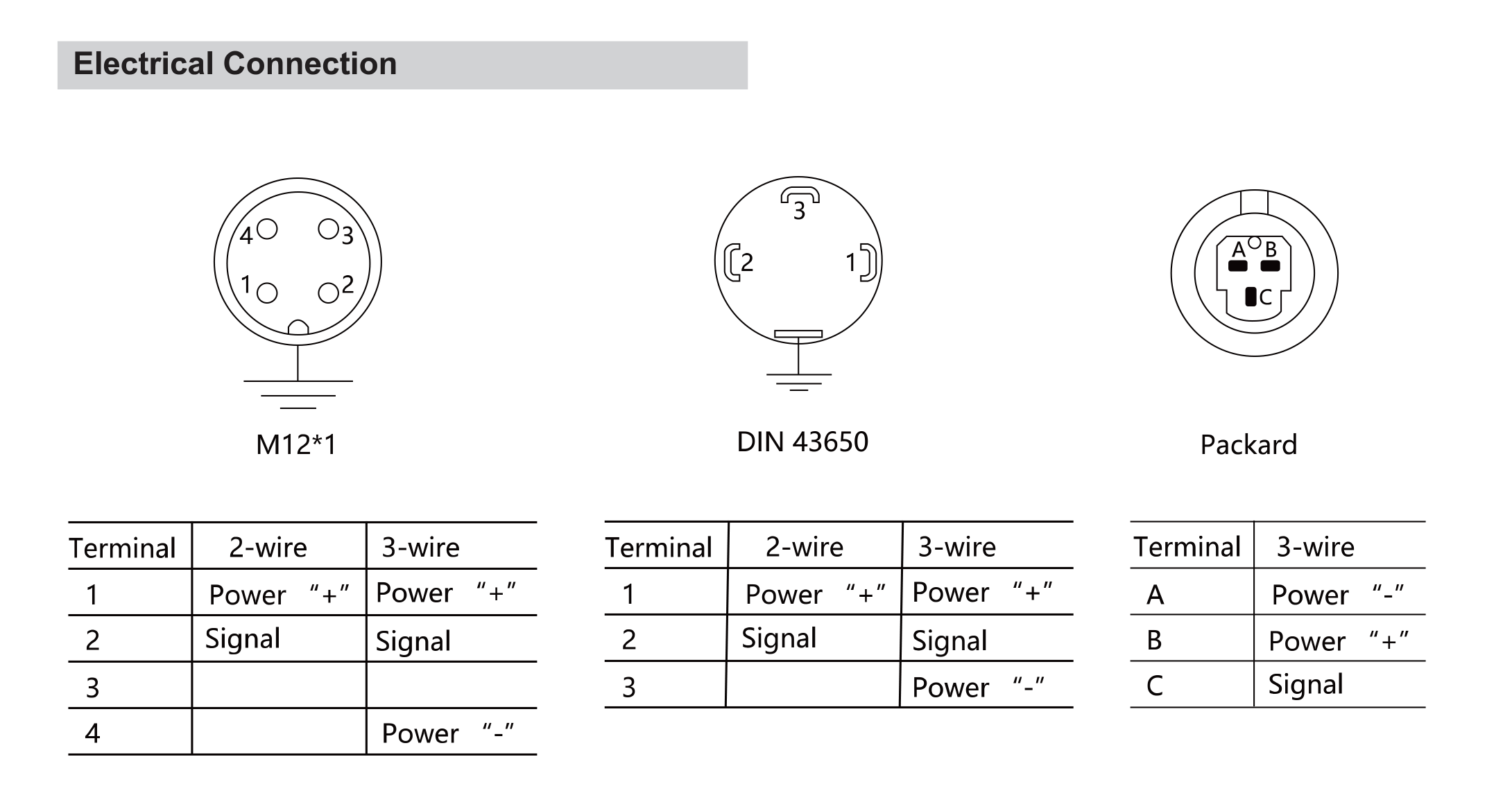

Electric connection	Packard ，1m wire，M12*1 4 pins，Hirschmann DIN43650
IP protection	IP67 or IP65(Hirschmann connection)

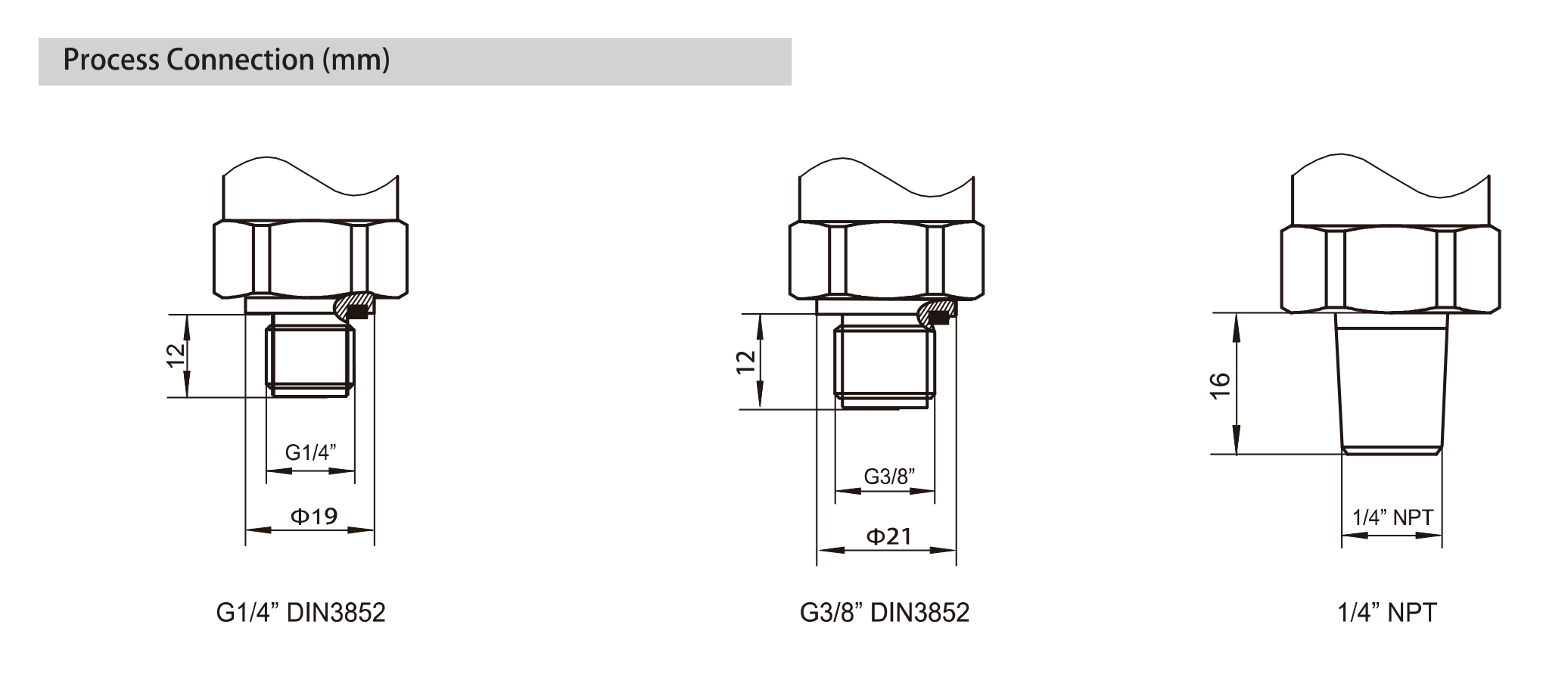

Process connection	G1/4”，G1/2”，M20*1.5，1/2”NPT，1/4”NPT
Vibration resistance	20g, 20Hz...5kHz
Shock resistance	100g, 11ms
Wetted parts	17-4PH stainless steel
Service life	10 million load cycles
Reversed polarity protection	Yes
Overvoltage Protection	30V
Load in Ω	Current Output: RL≤(Us-12)/20kΩ Voltage Output: RL＞10 kΩ
Insulation resistance	100MΩ at 500VDC
Response time (10%....90%)	1ms
Pressure resistance	Overpressure ：300% F.S.(below 60 MPa); Burst pressure: 500% F.S.;(customizable)

HLVC
Output signal	1	4-20mA
	3	0-10VDC
	5	0-5VDC
	6	0.5-4.5VDC
	7	0.5-4.5VDC ratio
	1	standard
	0	compact type（only for 0.5-4.5VDC）
Electrical connection	2	Packard (only for compact type)
	3	M12X4pins
	4	DIN43650
	6	1m wire
	8	SUMITOMO HV040
Process connection	4G	G1/4" DIN 3852
	4N	1/4”NPT
	3B	G3/8“DIN3852
	4J	G1/4" JS B2351
Pressure range	G1010	0-10bar
	G1016	0-16bar
	G1025	0-25bar
	G1050	0-50bar
	G1100	0-100bar
	G1250	0-250bar
	G1500	0-500bar
	G1700	0-700bar
	GX000	0-1000bar
	GP05K	0-5000psi
