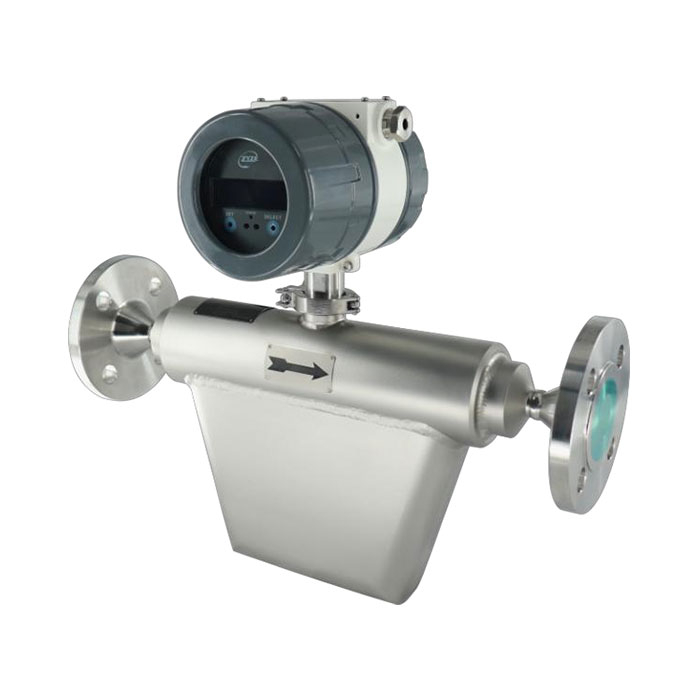

HFM10
ZYZL
ZYZL-HFM10
Measuring principle
Coriolis mass flowmeter operating principle involves inducing a vibration of the flow tube through which the fluid passes. The vibration, though it is not completely circular, provides the rotating reference frame which gives rise to the Coriolis effect. While specific methods vary according to the design of the flow meter, sensors monitor and analyze changes in frequency, phase shift, and amplitude of the vibrating flow tubes. The changes observed represent the mass flow rate and density of the fluid.
Basing on the controlled generation of Coriolis forces. These forces are always present in a system when both translational and rotational movements are superimposed.
Application
HFM10 has a long-standing reputation as a highly accurate sensor. Immune to fluctuating and harsh environments, it is suited for the broadest range of applications. With its compact transmitter HFM10 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.
1) Density measurement
The measuring tube is continuously excited at its resonance frequency. A change in the mass and thus the density of the oscillating system (comprising measuring tube and fluid) results in a corresponding, automatic adjustment in the oscillation frequency. The resonance frequency is thus a function of the medium density. The microprocessor utilizes this relationship to obtain a density signal.
2) Volume measurement
Together with the measured mass flow, this is used to calculate the volume flow.
3) Temperature measurement
The temperature of the measuring tube is determined in order to calculate the compensation factor due to temperature effects.
Special features of Coriolis Mass flowmeter
Product model | HFM10-CCG (U type) | HFM10-CCG (Ω type) | HFM10-CNG (CNG type) | HFM10-CMS (Slightly curved) |
Measuring medium | Liquid, gas | |||
Type | Integrated type, split body type | |||
Caliber | DN50/80/100/150 | DN3/6/15/25/40 | DN15/25/50 | DN15/20 |
Mechanical connection | HG/T20592/GB /T9119/DIN/CLASS | HG/T20592/GB/T9119 /DIN/CLASS/internal thread | HG/T20592/GB /T9119/DIN/CLASS | Internal thread |
Process pressure | 4MPa | 25MPa | ||
Measure pipe material | 316L | 316L / Hartz alloy | 316L | |
Process temperature | Universal (-40℃ ~ +200℃); Cryogenic type (-198℃ ~ +100℃); High temperature type (-40℃ ~ +350℃) | |||
Ambient temperature | -40~+60℃ | |||
Display | LCD display, Chinese / English, photosensitive button / with backlight | |||
Function | Mass flow rate, volume flow, density measurement | |||
Accuracy | Liquid 0.1% / 0.15% and gas 0.5% / 0.75% | |||
Density accuracy | 0.002g/cc | |||
Power supply voltage | 220VAC、24VDC | |||
Output signal | 4 ~ 20 mA, pulses, frequency | |||
Communication mode | HART、MODBUS RS-485 | |||
Levels of protection | IP67 | |||
Explosion-proof | Ex db ia IIC T6 Gb |
Outline Dimensions of Sensors
Optional dimensions for "U" , "Ω", slightly curved , and CNG four types of sensors.

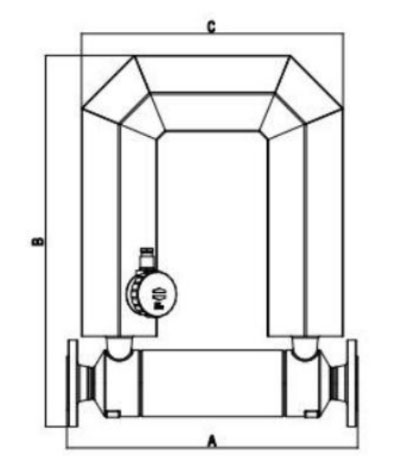

U type

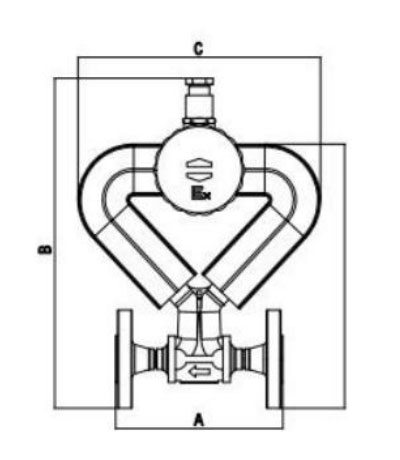

Ω type

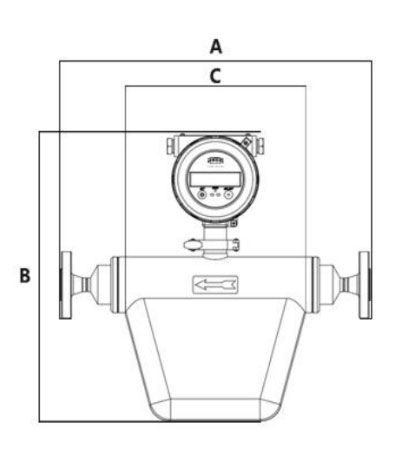

Slightly curved

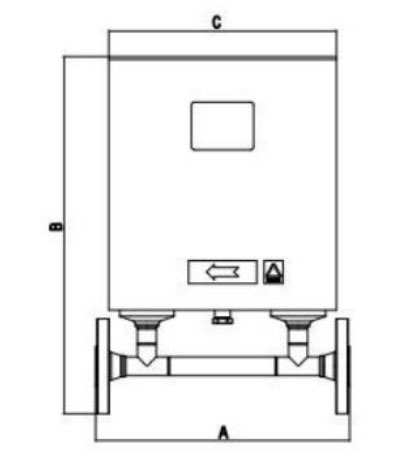

CNG type
Dimension table
Type | model | Nominal diameter | Maximum flow rate(kg/h) | External dimensions | Flange size (HG/T 20592) | Bolt | ||||
A | B | C | d | d0 | n-d1 | |||||
U type | CCG50 | 50 | 60000 | 556 | 711 | 506 | 165 | 125 | 4-Φ18 | M16 |
CCG80 | 80 | 180000 | 731 | 893 | 653 | 200 | 160 | 8-Φ18 | M16 | |
CCG1H | 100 | 300000 | 755 | 1162 | 709 | 235 | 190 | 8-Φ22 | M20 | |
CCG1F | 150 | 600000 | 1020 | 1322 | 907 | 300 | 250 | 8-Φ26 | M24 | |
CCG2H | 200 | 1200000 | 1200 | 1600 | 1000 | 375 | 320 | 12-Φ30 | M27 | |
Ω type | CCG03 | 3 | 260 | 196 | 255 | 243 | 95 | 65 | 4-Φ14 | M12 |
CCG06 | 6 | 1200 | 161 | 319 | 235 | 95 | 65 | 4-Φ14 | M12 | |
CCG15 | 15 | 3000 | 188 | 339 | 293 | 95 | 65 | 4-Φ14 | M12 | |
CCG25 | 25 | 12000 | 210 | 539 | 448 | 115 | 85 | 4-Φ14 | M12 | |
CCG40 | 40 | 30000 | 262 | 636 | 576 | 150 | 110 | 4-Φ18 | M16 | |
Slightly curved | CMS15 | 15 | 3000 | 344 | 330 | 300 | 95 | 65 | 4-Φ14 | M12 |
CMS25 | 25 | 12000 | 448 | 592 | 470 | 115 | 85 | 4-Φ14 | M12 | |
CMS50 | 50 | 60000 | 552 | 711 | 506 | 165 | 125 | 4-Φ18 | M16 | |
CNG type | CNG15 | 15 | 3000 | 136 | 326 | 210 | 95 | 65 | 4-Φ14 | M12 |
CNG20 | 20 | 9450 | 199 | 401 | 301 | 115 | 85 | 4-Φ14 | M12 |

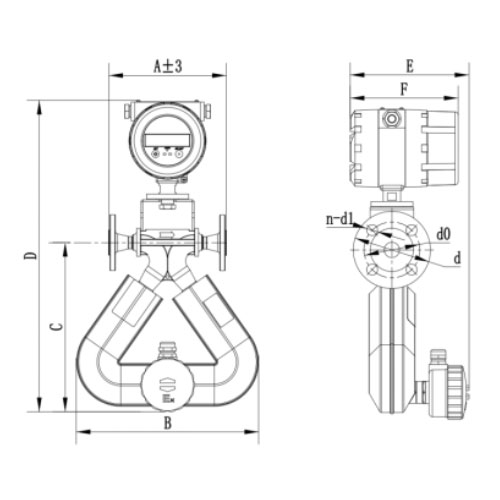

Ω type integrated shape

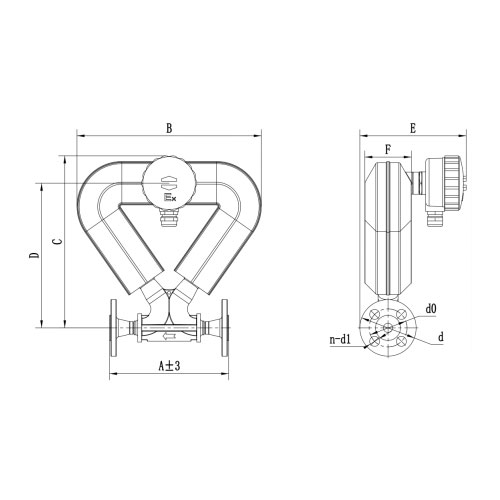

Ω type split shape

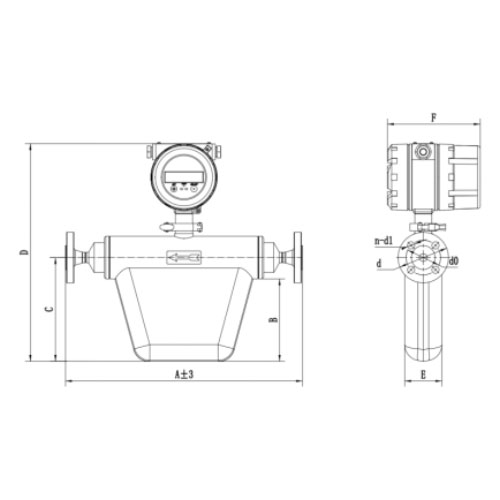

Slightly curved one-piece shape

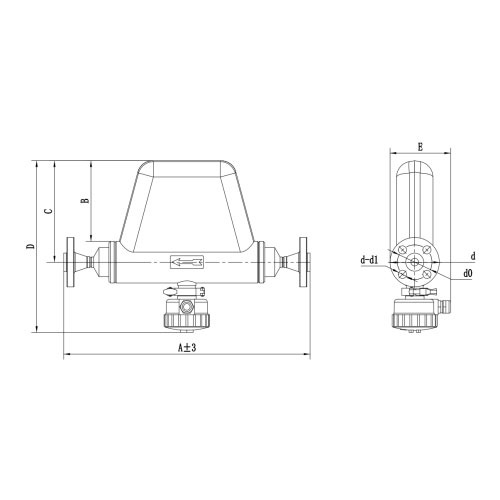

Slightly curved split shape

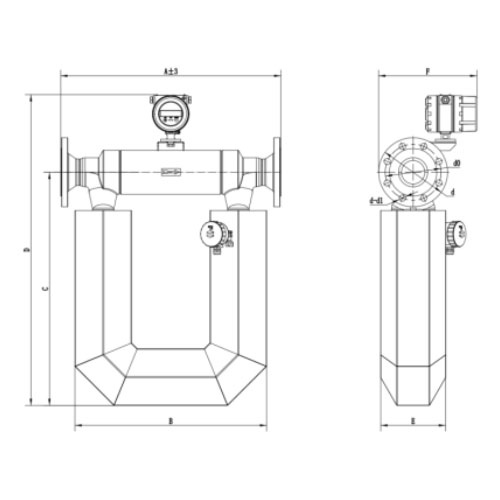

U-shape integrated shape

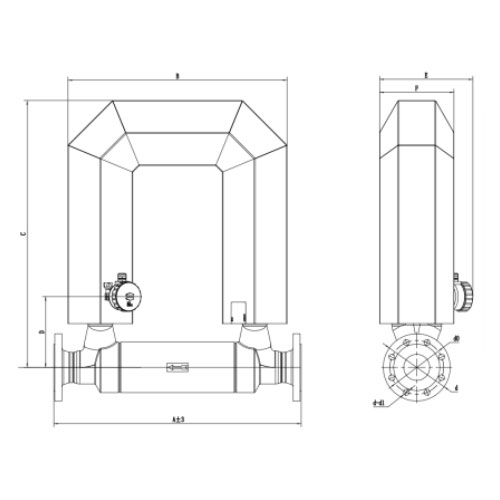

U-shaped split shape

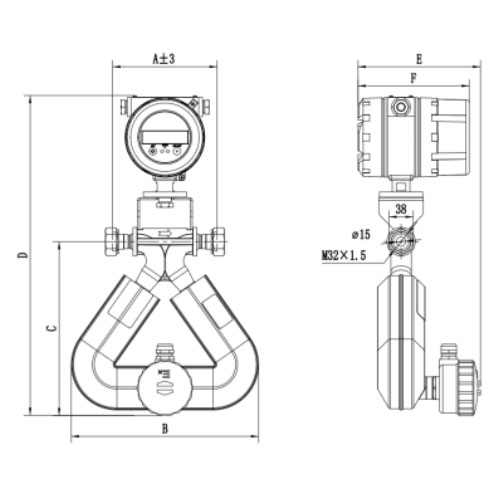

Screw shape

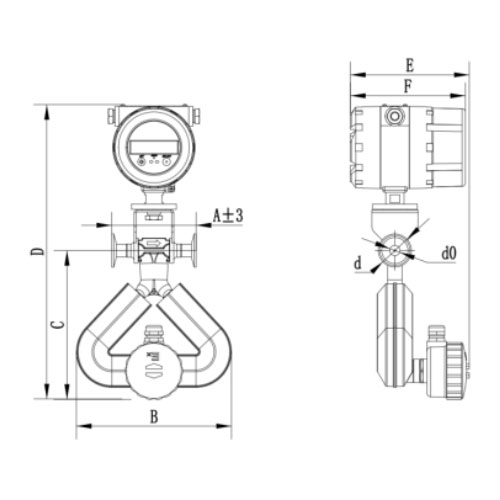

Clamp shape

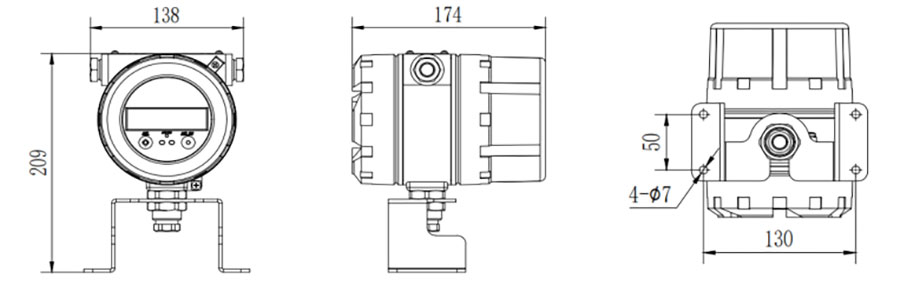

Outline Dimension of Transmitter
Product Series Code | |||||||||||||||||
CCG | General type | ||||||||||||||||
CNG | CNG only (caliber is DN15 / DN20 only) | ||||||||||||||||
CMS | CMS (caliber to DN15 / DN25 / DN50 only) | ||||||||||||||||
Sensor caliber | |||||||||||||||||
02 | DN02 | ||||||||||||||||
03 | DN03 | ||||||||||||||||
04 | DN04 | ||||||||||||||||
05 | DN05 | ||||||||||||||||
06 | DN06 | ||||||||||||||||
15 | DN15 | ||||||||||||||||
20 | DN20 | ||||||||||||||||
25 | DN25 | ||||||||||||||||
32 | DN32 | ||||||||||||||||
40 | DN40 | ||||||||||||||||
50 | DN50 | ||||||||||||||||
80 | DN80 | ||||||||||||||||
1H | DN100 | ||||||||||||||||
1F | DN150 | ||||||||||||||||
15H | DN15, Haralloy | ||||||||||||||||
25H | DN25, Haralloy | ||||||||||||||||
50H | DN50, Haralloy | ||||||||||||||||
1S | DN15-CMS microbending type | ||||||||||||||||
2S | DN25-CMS microbending type | ||||||||||||||||
5S | DN50-CMS microbending type | ||||||||||||||||
YY | Special caliber | ||||||||||||||||
Certification | |||||||||||||||||
P | Non-explosion-proof | ||||||||||||||||
G | Burtal / safety type Ex db ia IIC T6 Gb | ||||||||||||||||
Process pressure | |||||||||||||||||
A | Cl.300,DN20 below | ||||||||||||||||
B | Cl.300,DN25 | ||||||||||||||||
C | Cl.300,DN40 | ||||||||||||||||
F | 4MPa | ||||||||||||||||
Y | Process pressure | ||||||||||||||||
Accuracy class | |||||||||||||||||
1 | Accuracy of ±0.15% (default) | ||||||||||||||||
2 | 0.1% | ||||||||||||||||
9 | Special precision | ||||||||||||||||
Process temperature | |||||||||||||||||
N | Routine-40℃ ~ + 200℃ | ||||||||||||||||
L | Ultra-low temperature-198~100℃(limited to DN100 diameter (inclusive)) | ||||||||||||||||
H | Ultra-high temperature-40~ + 350℃ (only below DN80 diameter (inclusive)) | ||||||||||||||||
Y | Special process temperature (above DN100) | ||||||||||||||||
Mechanical connection | |||||||||||||||||
M | screw thread | ||||||||||||||||
F | Flange (Remarks on flange standard) | ||||||||||||||||
C | Hoop connection | ||||||||||||||||
Y | User customization (note required) | ||||||||||||||||
Measure pipe material | |||||||||||||||||
L | Stainless steel, 316L | ||||||||||||||||
H | hastelloy | ||||||||||||||||
Y | User Custom | ||||||||||||||||
Display mode | |||||||||||||||||
0 | No display interface | ||||||||||||||||
1 | The Chinese and English switching interface | ||||||||||||||||
Power supply | |||||||||||||||||
A | 85V~265VAC | ||||||||||||||||
D | 12V~36VDC | ||||||||||||||||
C | 24VDC,220VAC,Power adaptive | ||||||||||||||||
Communication and output signal | |||||||||||||||||
1 | Frequency + RS485 | ||||||||||||||||
2 | Frequency + RS485 + 4-20 mA (active) | ||||||||||||||||
3 | Dual route 4-20 mA (active) / HART + frequency | ||||||||||||||||
4 | From 4 to 20 mA HART + frequency | ||||||||||||||||
5 | Frequency + RS485 + 4 ~ 20 mA (active), with a relay | ||||||||||||||||
6 | 4 ~ 20 mA + HART + frequency + RS485 | ||||||||||||||||
7 | Profibus PA 2 lanes 4 ~ 20 mA, frequency, modbus 485 | ||||||||||||||||
8 | |||||||||||||||||
9 | User Custom | ||||||||||||||||
Electrical interface | |||||||||||||||||
M | M20×1.5 | ||||||||||||||||
N | NPT1/2 | ||||||||||||||||
Y | User Custom | ||||||||||||||||
Installation | |||||||||||||||||
A | Split body type | ||||||||||||||||
B | Integrated type | ||||||||||||||||
Cable length | |||||||||||||||||
B | 3m (default) | ||||||||||||||||
L | ....... m cable | ||||||||||||||||
A | One body size, no cable | ||||||||||||||||
K | ...m, armored cable | ||||||||||||||||
Y | Other cables | ||||||||||||||||
Extended options | |||||||||||||||||
A | None | ||||||||||||||||
B | Pm the sensor junction box | ||||||||||||||||
C | Heat insulation jacket | ||||||||||||||||
D | companion flange | ||||||||||||||||
E | Liquid, batch treatment | ||||||||||||||||
F | In addition to oil treatment | ||||||||||||||||
G | Custom-made 316L housing |
