Applications of Pressure transducer
- OEM customer
- Semiconductor
- Solar PV
- Specialty Gas
Introduction of Pressure transducer

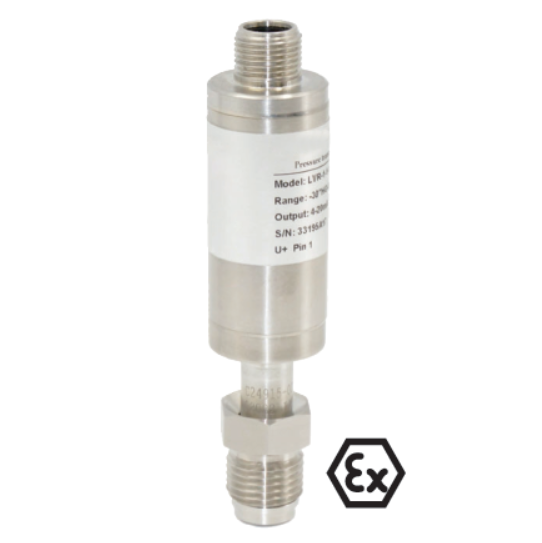

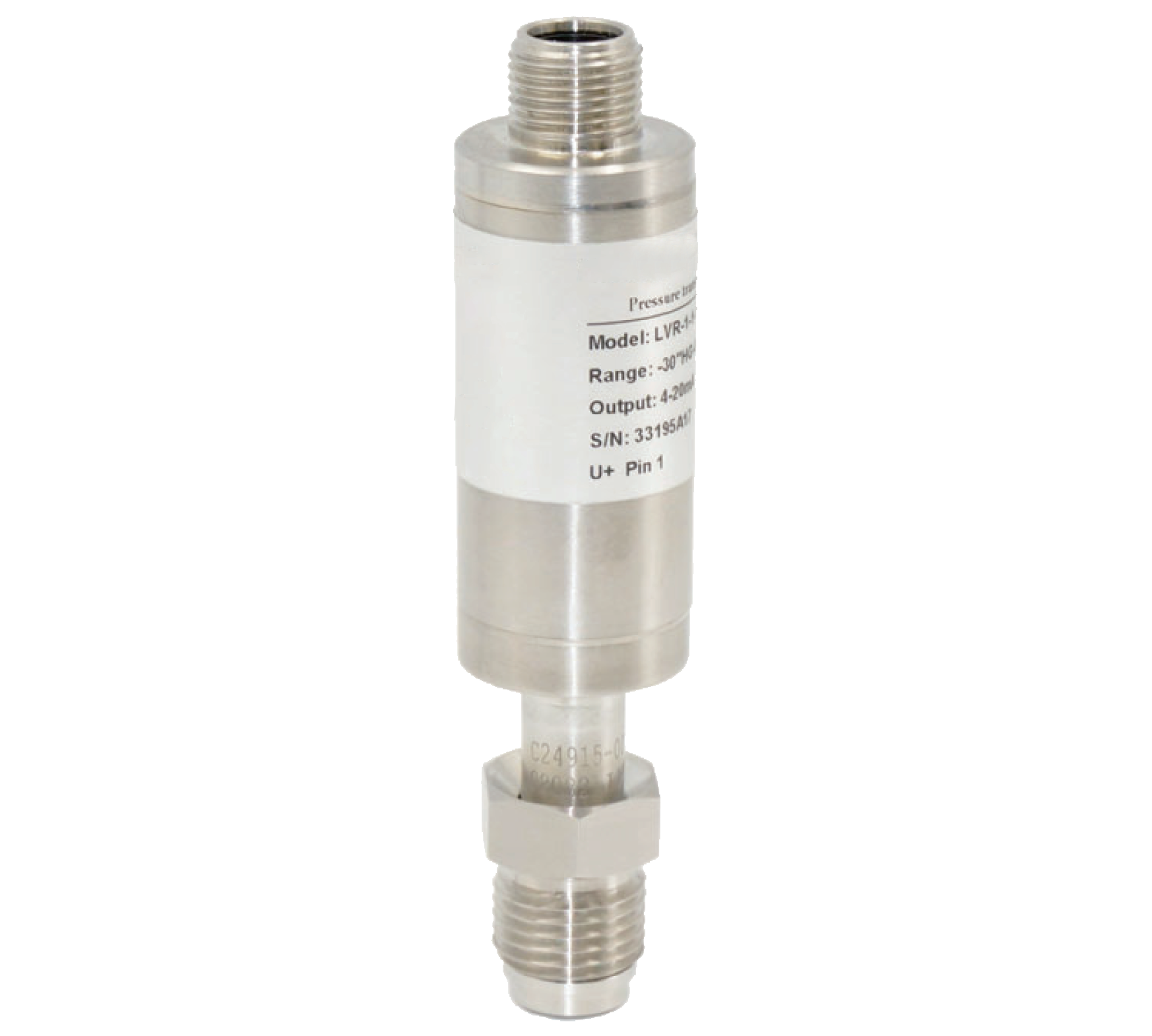

HLUP Ultra High Purity pressure transducer continue to push the boundaries of ultrahigh-purity (UHP) pressure measurement performance, provides reliable, clean, and consistent flow and pressure measurement solution at high temperatures and speeds.
Ultra High Purity pressure transducer Compliance with SEMI F19, Ra＜0.13 μm, 100 Helium leak test and packed in class 100 clean room, it provides semiconductor chip fabricators, foundries, and the mechanical contractors and gas/chemical suppliers who support them with a variety of general industrial fluid pressure measurement system products that deliver reliable performance in semiconductor manufacturing applications.
Special features of Pressure transducer
·Wet parts apply all stainless steel welding excellent corrosion resitance
·Output 4~20mA
·Wet parts apply all stainless steel welding excellent corrosion resitance
·Strong anti-interference and excellent long-term stability
·Digital circuit compensation
·All wetted parts are electro-polished accord to SEMl F19, Ra≤0.13um
·100% Helium leak tested and packed in class 100 clean room
·Accuracy up to 0.1%BFSL(include linearity, hysteresis and repeatability)
·Various type of VCR connection available: male, female, fixed and swivel
