Radar level measurement
Continuous level measurement in liquids and solids with free space radar sensors

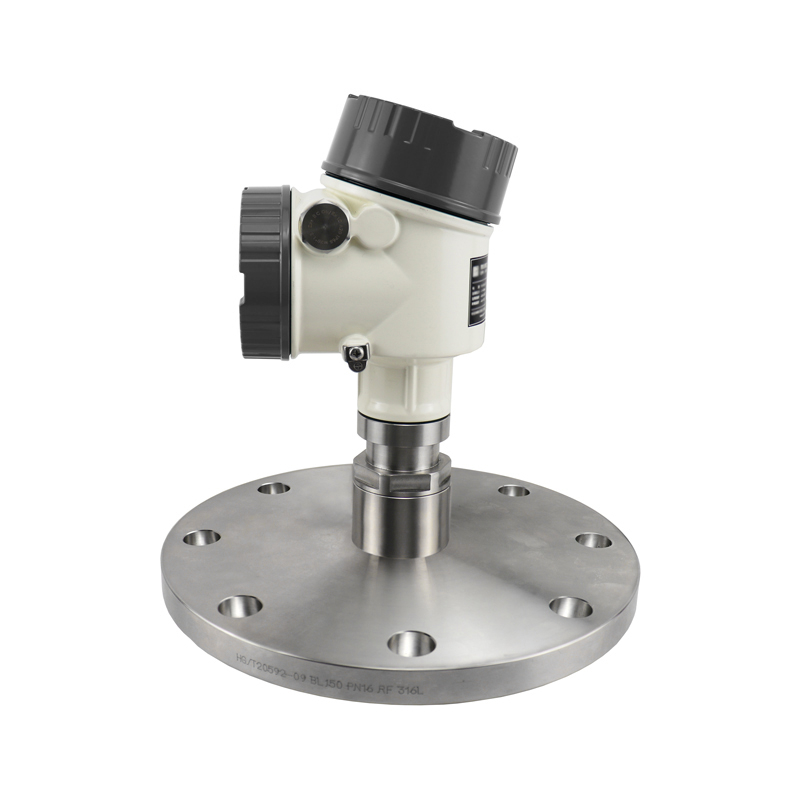

ZYZL-HLR8 is part of the new generation of 120 GHz radar sensors. It is used for continuous non-contact level measurement in challenging liquid applications. It masters process requirements like high temperatures, high process pressure as well as changing media.
ZYZL’s non-contacting radar technology portfolio of level transmitters and tank gauging systems is designed for ease-of-use with no need for calibration, with built-in diagnostics and the ability to detect even the smallest of level changes. It utilizes the powerful frequency-modulated continuous wave (FMCW) radar technology for robust, reliable measurement across all tank sizes, The latest advancements with radar technology will help to optimize processes and improve safety across all industries.
ZYZL Radar Level Transmitters feature 120 GHz Fast Sweep Technology. With the latest Radar on a Chip technology and higher integration in their electronics, these sensors send more sweeps each second to ensure that users get the clearest view of the media surface.
ZYZL’s non-contacting radar portfolio utilizes Frequency Modulated Continuous Wave (FMCW) technology. A continuous radar signal is transmitted with the frequency increasing over time, creating a “signal sweep”. This signal is reflected from the surface back to the antenna, and the level is calculated.
This technology enables greater measurement accuracy and reliability and can be applied to a broader range of applications. Changing media density, temperature variations, dust or pressure changes do not affect accuracy.
The highest accuracy is ± 0.5mm; the minimum blind area is 0.01m;
Frequmodulation continuous wave technology, wider bandwidth, higher frequency, stronger energy;
Under the working conditions of high temperature, high pressure, strong corrosion and toxic gas, the use of THz electromagnetic wave can penetrate tempered glass, PTFE, PFA, ceramics and other materials, based on these materials as the basis to make special partition, can measure some limit conditions, the temperature up to 680℃, the highest pressure up to 100bar;
Built-in micro-band antenna, no horn mouth, easy to install;
The minimum 0.7 beam Angle can also be measured normally in easy crystallization, adhesion and other occasions.
