Applications of Differential Pressure Transmitter
Petro-chemical
Power plant
Water treatment
Process control
Food and beverage, water and other industries
Pressure monitoring of filters and pumps
Level measurement of liquids in pressurized vessels
Flow measurement of gases, vapours and liquids with primary elements
Measurement of density and separating layers of liquids in tanks

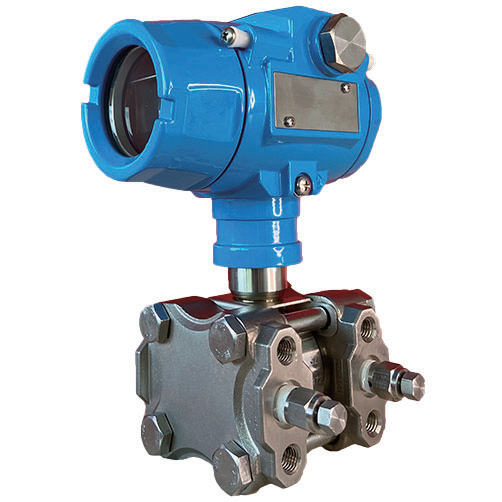

Introduction of Differential Pressure Transmitter
The differential pressure transmitter module uses whole welded technology, in which has a compact overload diaphragm, the positive end of the differential pressure sensor is connected with high pressure chamber of sensor capsule; The negative end is connected with low pressure chamber of sensor capsule. Through the isolated diaphragm and filling liquid, the differential pressure is transmitted to silicon die in the inner of differential pressure sensor, which makes the resistor of sensor die change. So the detection system outputs different voltage. The output voltage is in proportion to the pressure variation, and then it is transmitted to standard output by adapter and amplifier.
Special features of Differential Pressure Transmitter
Monosilicone-based high performing transmitter
Explosion proof approval include NEPSl, CSA and Intertek
Accuracy up to 0.04% of URL
HART protocol and Modbus communication available
Advanced monocrystalline silicon differential pressure sensor adopted
Intelligent LCD gauge outfit with backlight
With both the remote transmission and the local zero and pressure range adjustment
Complete varieties, high accuracy, good stability,
High static pressure, high overload protection
Patented double overload protection diaphragm design
Lightning protection circuit design
