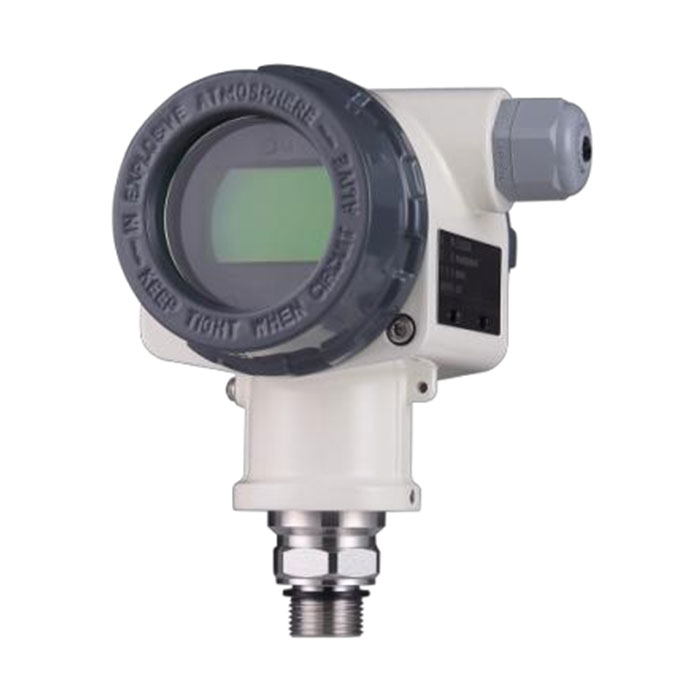

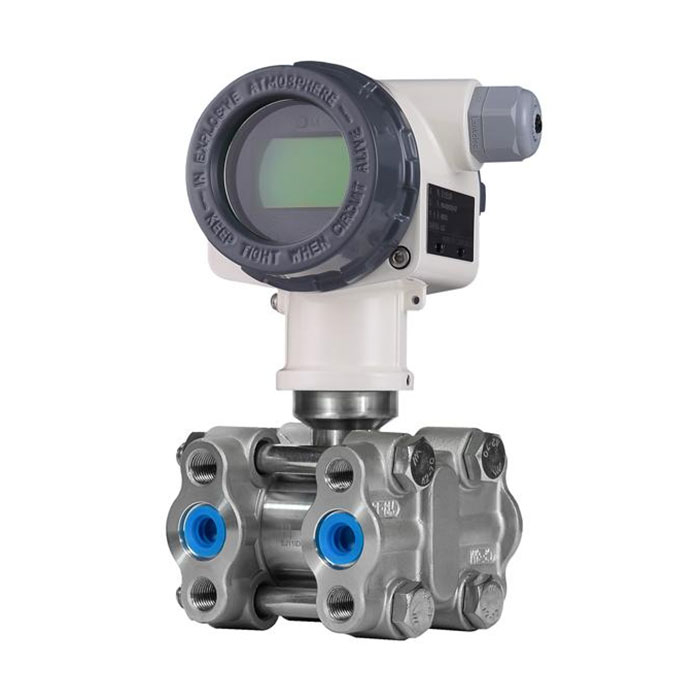

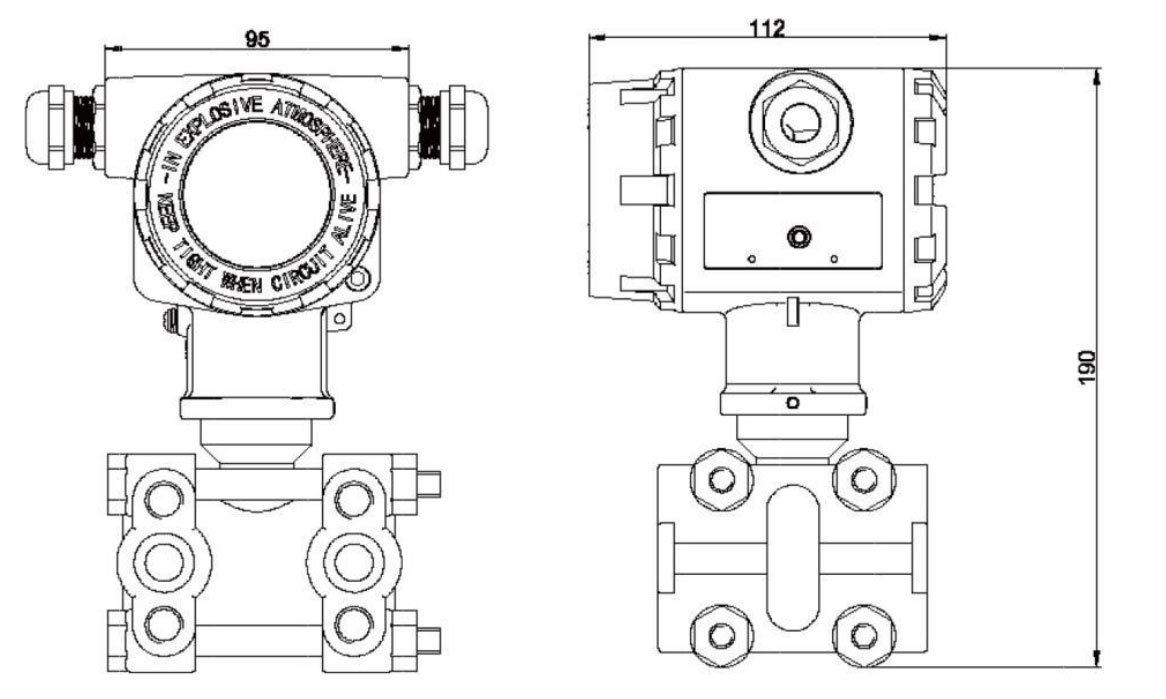

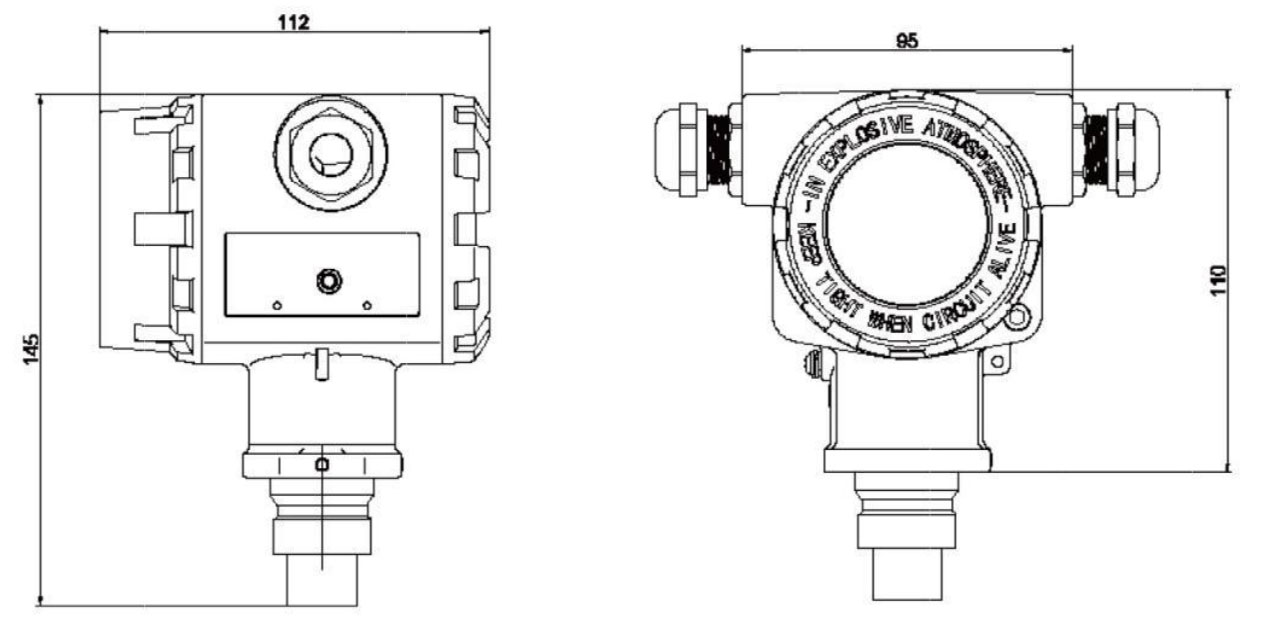

HPM50 High-precision-type pressure transmitter |
Type |
| A | Pressure accuracy: 0.075% (metal diaphragm) |
| B | Pressure accuracy: 0.1% (metal diaphragm) |
| T | Pressure transmitter accuracy: 0.075% (ceramic diaphragm) |
| S | Accuracy of pressure transmitter: 0.1% (ceramic diaphragm) |
| Y | Customer custom |
Certificate |
|
| A | Conventional type |
|
| B | NEPSI Ex ia IIC T4 |
|
| C | NEPSI Ex d IIC T6 |
Shell + communication interface |
|
|
| M | Aluminum housing + cable plug M20 |
|
|
| Y | Customer custom |
Output |
|
|
|
| 1 | 4-20mA |
|
|
|
| 2 | A 4-20mA + display |
|
|
|
| 3 | 0-10V |
|
|
|
| 4 | A 0-10V + display |
|
|
|
| 5 | Modbus |
|
|
|
| 6 | Modbus + Display |
|
|
|
| 7 | 4-20mA Hart |
|
|
|
| 8 | 4-20mA Hart + display |
|
|
|
| 9 | 4-20mA PA + display |
|
|
|
| B | 4 ~ 20 mA + HART, OLED display, ambient temperature-40 to 80℃ |
|
|
|
| A | 4 ~ 20 mA, OLED display, ambient temperature-40~ + 80℃ |
|
|
|
| Y | Customer custom |
Range |
|
|
|
|
| AA | 100mbar/10kPa/1.5psi Gauge pressure |
|
|
|
|
| BA | 400 mbar / 40 kPa / 6 psi gauge pressure |
|
|
|
|
| BB | 1bar / 100 kPa / 15 psi gauge pressure |
|
|
|
|
| BC | 4bar / 400 kPa / 60 psi gauge pressure |
|
|
|
|
| BD | 6bar / 600 kPa / 90 psi gauge pressure |
|
|
|
|
| BE | 10bar / 1MPa / 150 psi gauge pressure |
|
|
|
|
| BF | 16bar/1.6MPa/240psi Gauge pressure |
|
|
|
|
| BG | 25bar/2.5MPa/375psi Gauge pressure |
|
|
|
|
| BH | 40bar / 4MPa / 600 psi gauge pressure |
|
|
|
|
| BI | 100bar / 10MPa / 1500 psi gauge pressure |
|
|
|
|
| BK | 400bar / 40MPa / 6000 psi gauge pressure |
|
|
|
|
| BL | 600bar / 60MPa / 9000 psi gauge pressure |
|
|
|
|
| JA | 400 mbar / 40 kPa / 6 psi pressure |
|
|
|
|
| JB | 1bar / 100 kPa / 15 psi pressure |
|
|
|
|
| JC | 4bar / 400 kPa / 60 psi pressure |
|
|
|
|
| JD | 6bar / 600 kPa / 90 psi pressure |
|
|
|
|
| JE | 10bar / 1MPa / 150 psi pressure |
|
|
|
|
| JF | 16bar/1.6MPa/240psi Push-off pressure |
|
|
|
|
| JG | 25bar/2.5MPa/375psi Push-off pressure |
|
|
|
|
| JH | 40bar / 4MPa / 600 psi pressure |
|
|
|
|
| JI | 100bar / 10MPa / 1500 psi pressure |
|
|
|
|
| JK | 400bar / 40MPa / 6000 psi pressure |
|
|
|
|
| JL | 600bar / 60MPa / 9000 psi pressure |
|
|
|
|
| YY | Customer custom |
Membrane type |
|
|
|
|
|
| S | 316L |
|
|
|
|
|
| P | PFA plating (flange option only) |
|
|
|
|
|
| H | Hastelloy HC |
|
|
|
|
|
| T | Tantalum film |
|
|
|
|
|
| G | Gold-plated film |
|
|
|
|
|
| C | Ceramic film |
|
|
|
|
|
| Y | Customer custom |
Procedure structure |
|
|
|
|
|
|
| A | Normalized form |
|
|
|
|
|
|
| B | Seal ring (Viton) (ceramic diaphragm) |
|
|
|
|
|
|
| C | Capillary shape.... m |
|
|
|
|
|
|
| E | Capillary type (PVC protective tube)... m |
|
|
|
|
|
|
| T | High temperature heat dissipation film type |
|
|
|
|
|
|
| Y | Customer custom |
Procedure linkage |
|
|
|
|
|
|
|
| GM | M20x1.5 |
|
|
|
|
|
|
|
| PM | M20x1.5 flat film type |
|
|
|
|
|
|
|
| GN | NPT 1 / 2, outer thread |
|
|
|
|
|
|
|
| NN | NPT 1 / 2, inner thread |
|
|
|
|
|
|
|
| PN | MNPT1/2，FNPT1/4 |
|
|
|
|
|
|
|
| GQ | NPT 3 / 4, outer thread |
|
|
|
|
|
|
|
| GT | NPT1/4 |
|
|
|
|
|
|
|
| NT | NPT 1 / 4, inner thread |
|
|
|
|
|
|
|
| GO | G1/4 |
|
|
|
|
|
|
|
| GP | G1/2 |
|
|
|
|
|
|
|
| PP | G1 / 2 flat membrane type |
|
|
|
|
|
|
|
| GR | G1 |
|
|
|
|
|
|
|
| GS | G2 |
|
|
|
|
|
|
|
| RA | R1/2 |
|
|
|
|
|
|
|
| TA | "Sanitary Type ISO2852 1" |
|
|
|
|
|
|
|
| TB | Sanitary type ISO2852 1-1 / 2" |
|
|
|
|
|
|
|
| TC | "Sanitary Type ISO2852 2" |
|
|
|
|
|
|
|
| TD | Health-type ISO2852 2-1 / 2" |
|
|
|
|
|
|
|
| 1A | DIN 11851 DN25 |
|
|
|
|
|
|
|
| 1B | DIN 11851 DN32 |
|
|
|
|
|
|
|
| 1C | DIN 11851 DN40 |
|
|
|
|
|
|
|
| 1D | DIN 11851 DN50 |
|
|
|
|
|
|
|
| DA | EN / DIN flange DN25 PN10-40 B1 |
|
|
|
|
|
|
|
| DB | EN / DIN flange DN32 PN10-40 B1 |
|
|
|
|
|
|
|
| DC | EN / DIN flange DN40 PN10-40 B1 |
|
|
|
|
|
|
|
| DD | EN / DIN flange DN50 PN10-40 B1 |
|
|
|
|
|
|
|
| DE | EN / DIN flange DN80 PN10-40 B1 |
|
|
|
|
|
|
|
| AA | "ASME flange 1" 300lbs RF" |
|
|
|
|
|
|
|
| AB | "ASME flange 1-1 / 2" 150lbs RF" |
|
|
|
|
|
|
|
| AC | "ASME flange 1-1 / 2" 300lbs RF" |
|
|
|
|
|
|
|
| AD | "ASME flange 2" "150lbs RF" |
|
|
|
|
|
|
|
| AE | "ASME flange 2" "300lbs RF" |
|
|
|
|
|
|
|
| AF | "ASME flange 3" 150lbs RF" |
|
|
|
|
|
|
|
| AG | "ASME flange 3" 300lbs RF" |
|
|
|
|
|
|
|
| AH | "ASME flange 4" 150lbs RF" |
|
|
|
|
|
|
|
| AI | "ASME flange 4" 300lbs RF" |
|
|
|
|
|
|
|
| HK | Flange HG/T20592 DN25 PN10/40 RF |
|
|
|
|
|
|
|
| HA | Flange HG/T20592 DN50 PN10/40 RF |
|
|
|
|
|
|
|
| HB | Flange HG/T20592 DN63 PN10/40 RF |
|
|
|
|
|
|
|
| HC | Flange HG/T20592 DN80 PN10/40 RF |
|
|
|
|
|
|
|
| HD | "Flange HG/T20615 NPS 2" Cl.150 RF" |
|
|
|
|
|
|
|
| HE | "Flange HG/T20615 NPS 3" Cl.150 RF" |
|
|
|
|
|
|
|
| HF | "Flange HG/T20615 NPS 2" Cl.300 RF" |
|
|
|
|
|
|
|
| HG | "Flange HG/T20615 NPS 3" Cl.300 RF" |
|
|
|
|
|
|
|
| GT | G1-1/2 |
|
|
|
|
|
|
|
| YY | Customer custom |
Additional options |
|
|
|
|
|
|
|
|
| S1 | Welding seat (carbon steel) |
|
|
|
|
|
|
|
|
| S2 | Sder (Stainless steel) |
|
|
|
|
|
|
|
|
| T1 | Metal listing |
|
|
|
|
|
|
|
|
| L1 | 201 Mounting bracket |
|
|
|
|
|
|
|
|
| L2 | SS304 Mounting bracket |
|
|
|
|
|
|
|
|
| L3 | SS316 mounting bracket |
|
|
|
|
|
|
|
|
| Q1 | SS304 two valve sets |
|
|
|
|
|
|
|
|
| Q2 | SS316 with two valve sets |
|
|
|
|
|
|
|
|
| Q3 | SS304 Stop Valve |
|
|
|
|
|
|
|
|
| P1 | Condensing tube, SS304 |
|
|
|
|
|
|
|
|
| W1 | Surge protective devices surge protector |
|
|
|
|
|
|
|
|
| YY | Special requirements |
Special option |
|
|
|
|
|
|
|
|
|
| XXX | Software release |
