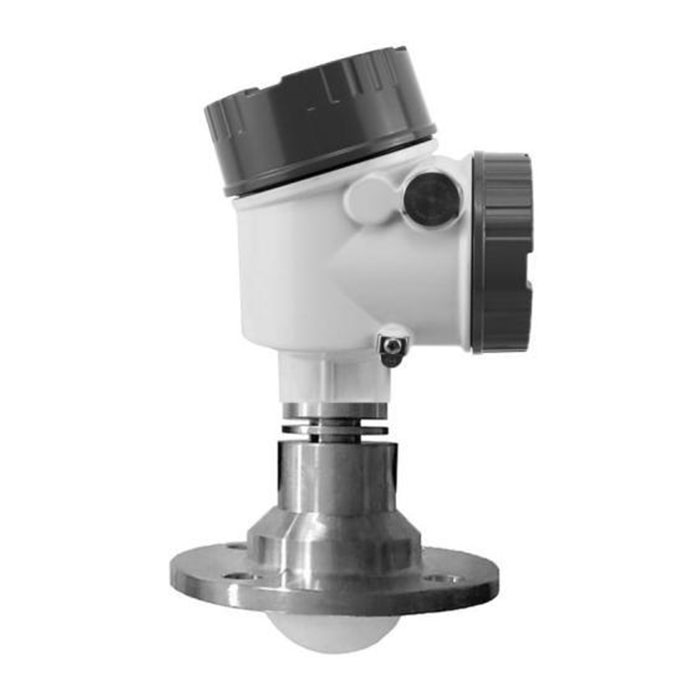

HLR6
ZYZL
ZYZL-HLR6

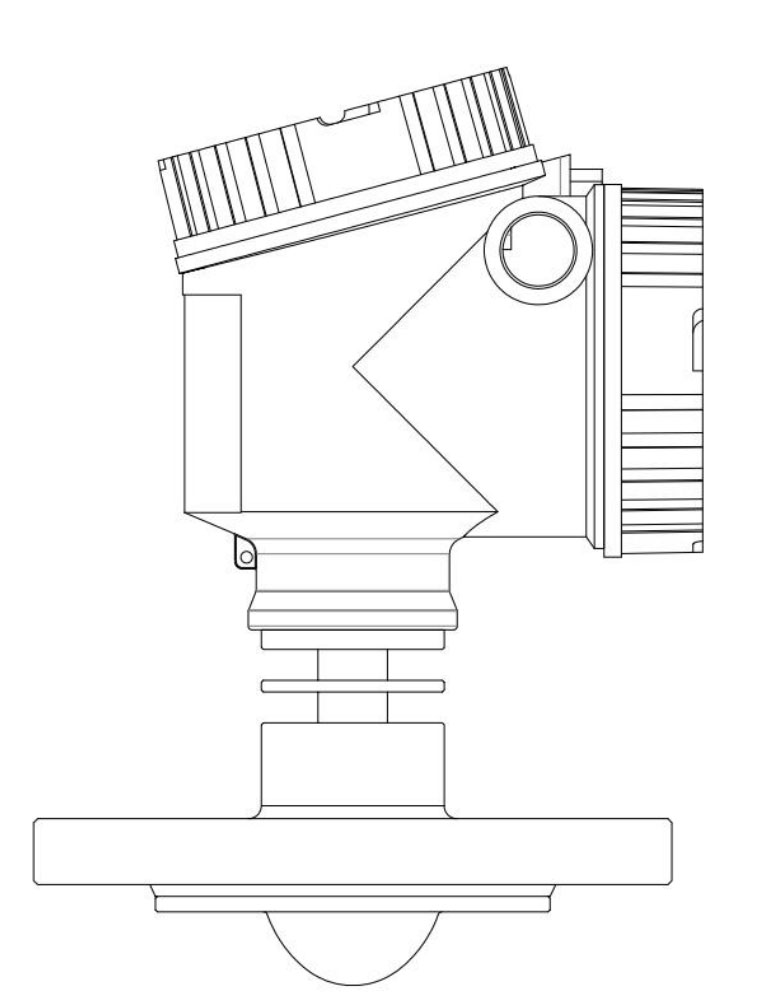

HLR62 Application: The liquid is suitable for highly corrosive liquid steam, foam Measuring range: 0~30 m Measurement accuracy: ± 2mm Process temperature: -40~130℃; -40~200℃ Process pressure:: -0.1~2.5MPa Signal outputs: (4~20) mA / HART;RS485 / MODBUS protocol Power supply: see (Supply voltage) Field display / button: optional Housing: B / A / D Antenna type: DS / DQ / ES / EQ Antenna material: 316L + PTFE / 316L + PFA Installation form: flange Protection class: IP66 / IP67 Explosion-proof mark: Ex d ia [ia Ga] IIC T2 ~ T6 Gb; Ex ia IIC T2 ~ T6 Ga |
|
| Note: ① Shell B, the protection level is IP66; Shell A / D, the protection level is IP67; ② The antenna size are DN50 and DN80 respectively, and the measurement accuracy is±2mm. | |
HLR63 Application: Liids are suitable for highly corrosive / resistant liquids Measuring range: 0~10m / 0~30m / 0~120m Measuring accuracy: ± 2mm / ± 5mm Process temperature: -40~130℃; -40~200℃ Process pressure: -0.1~0.1MPa Suitable for corrosion-resistant liquids -0.1~2.5MPa is suitable for pressure-resistant liquids Signal outputs: (4~20) mA / HART;RS485 / MODBUS protocol Power supply: see (Supply voltage) Field display / button: optional Housing: B / A / D Antenna type: AP / AM / FP / / FM / FT / GP / GM / GT Antenna material: 316L + PTFE / PFA Installation form: screw thread Protection level: IP66 / IP67 Explosion-proof mark: Ex d ia [ia Ga] IIC T2 ~ T6 Gb; Ex ia IIC T2 ~ T6 Ga |
|
| Note: ① shell is B, the protection level is IP66; shell A / D, the protection level is IP67; ② When the antenna diameter is 21mm, the instrument range is 0~10m, the accuracy is ± 2mm; when the antenna diameter is 43mm, the instrument range is 0~30m, the accuracy is ± 2mm; when the antenna diameter is 76 / 65mm, the instrument range is 0~120m, the accuracy is ± 5mm. | |

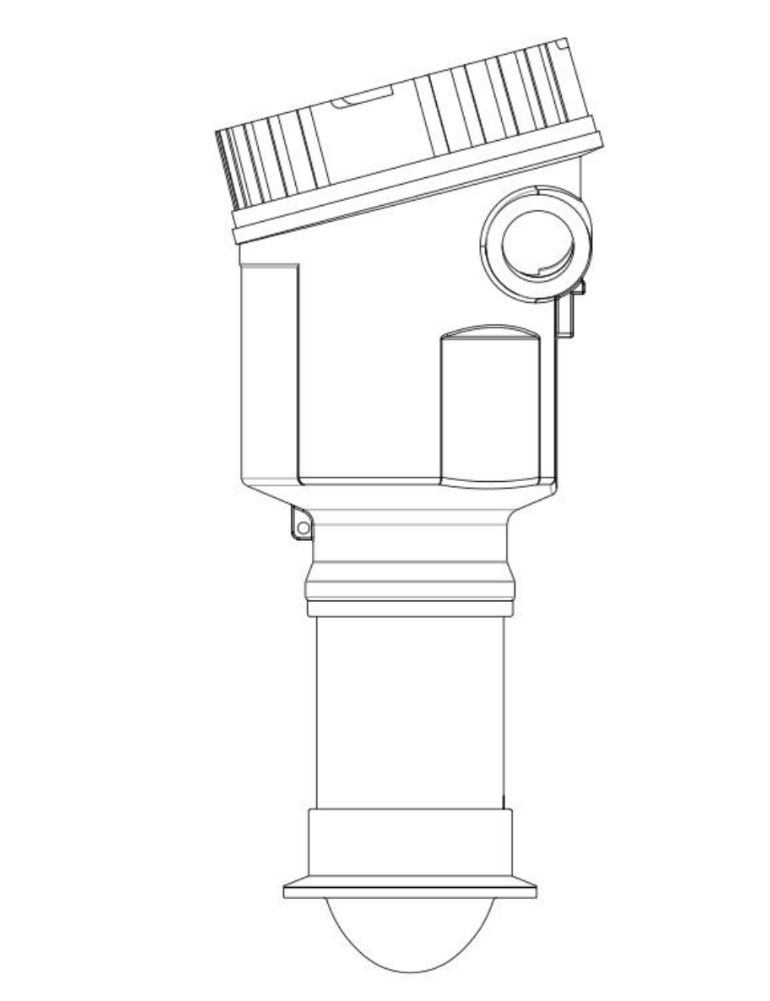

HLR64 Application: Health grade Measuring range: 0~30 m Measurement accuracy: ± 2mm Process temperature: -40~130℃ Process pressure:: -0.1~0.1MPa Signal outputs: (4~20) mA / HART;RS485 / MODBUS protocol Power supply: see (Supply voltage) Field display / button: optional Housing: B / A / D / K Antenna type: KW / KQ Antenna material: 316L + PTFE Installation form: 2 "cartridge / 3 ½" cartridge Protection level: IP66 / IP67 Explosion-proof mark: Ex d ia [ia Ga] IIC T2 ~ T6 Gb; Ex ia IIC T2 ~ T6 Ga |
|
| Note: ① shell is B, protection level is IP66; shell A / D / K, protection level is IP67; ② The antenna sizes are DN50 and DN80, respectively, and the measurement accuracy is ± 2mm. | |

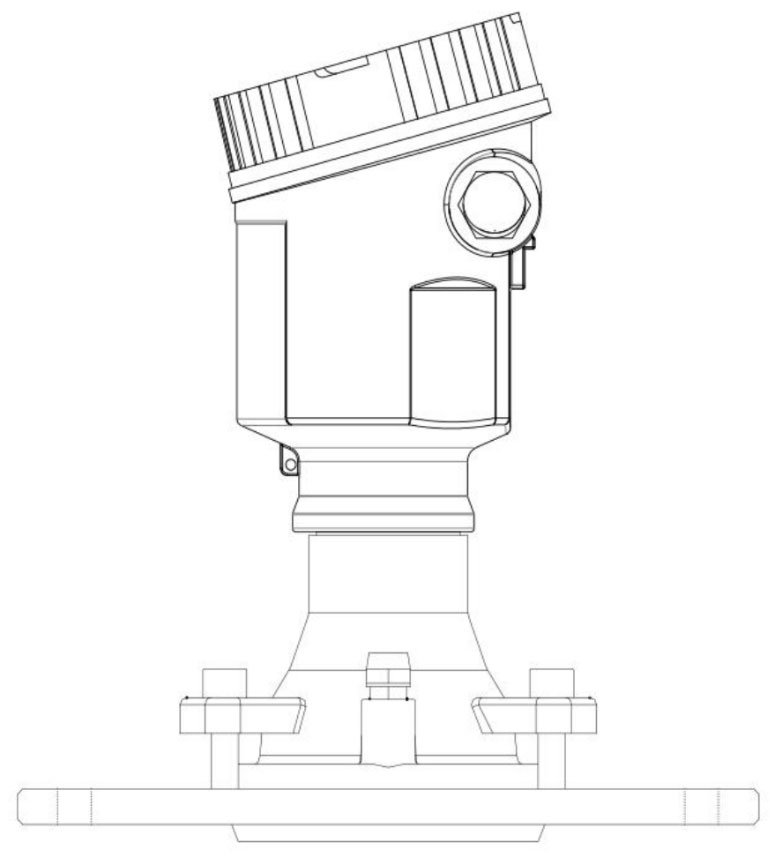

HLR65 Application: Solid / liquid storage containers / process containers or strong dust conditions Measuring range: 0~120 m Measurement accuracy: ±5mm Process temperature: -40~110℃; -40~130℃; -40~200℃ Process pressure: normal pressure-0.1~0.1MPa;-0.1~0.3MPa Signal output: (4~20) mA / HART; RS485 / MODBUS protocol Power supply: see (Supply voltage) Field display / button: optional Housing: B / A / D Antenna type: MW / NW / RW / HG / JG / LG Antenna material: aluminum-lined plastic + PP/316L + PTFE /316L + PEEK/316L + PTFE with heat dissipation/316L + PEEK with heat dissipation Installation form: flange / thread / hanger Protection level: IP66 / IP67 Explosion-proof mark: Ex d ia [iaGa] IIC T2 ~ T 6 Gb; Ex ia IIC T2 ~ T 6 Ga |  |
| Note: ① shell B, the protection level is IP66; shell A / D, the protection level is IP67; ② When the antenna diameter is 76/65mm, the instrument range is 0~120m, and the measurement accuracy is ± 5mm. | |

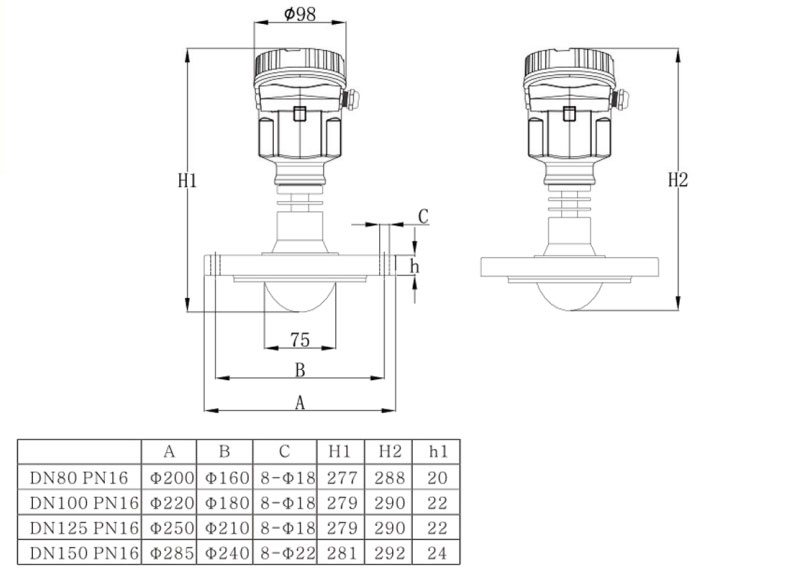

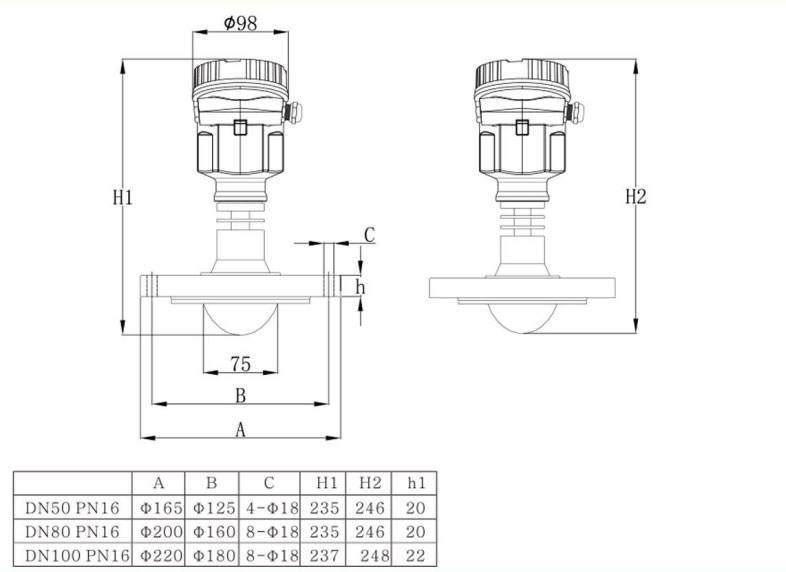

| HLR62 | HLR62 |
Antenna form: DS, DQ Case: A，B，D | Antenna form：ES、EQ Case：A，B，D |
 |  |

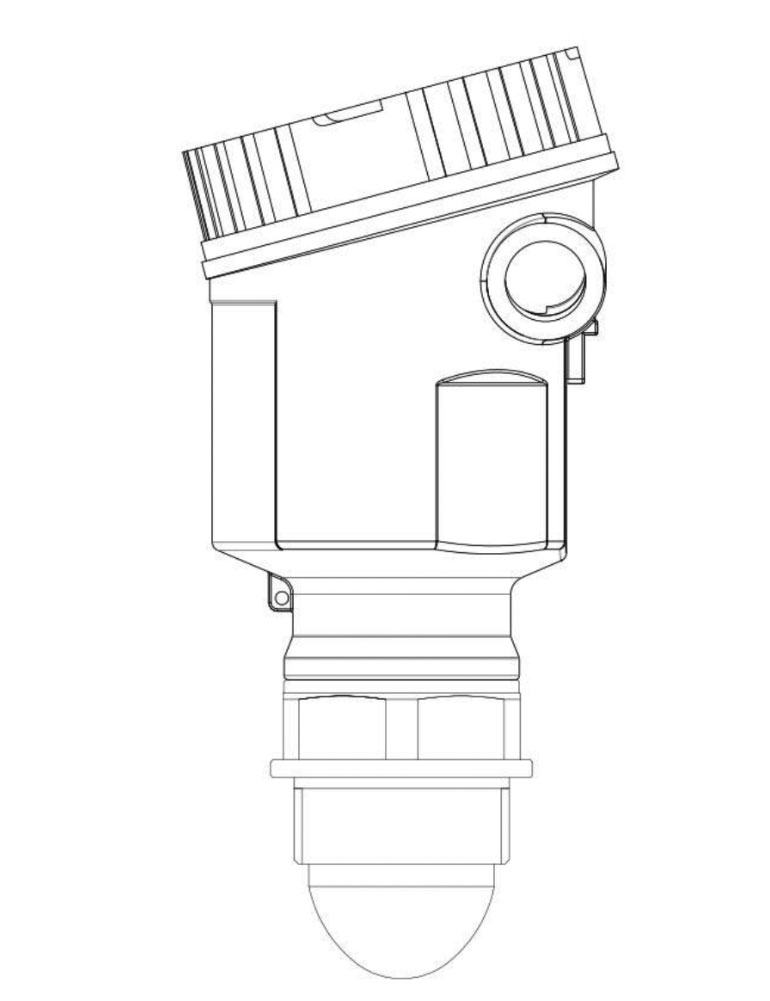

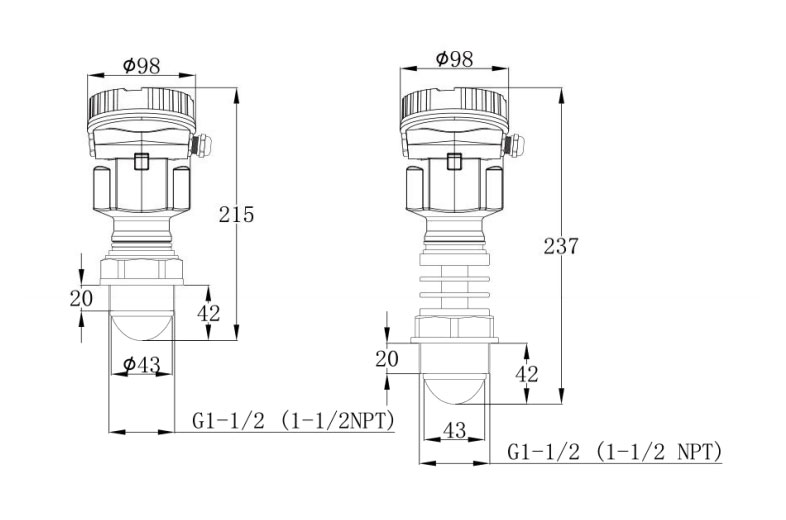

| HLR63 | HLR63 |

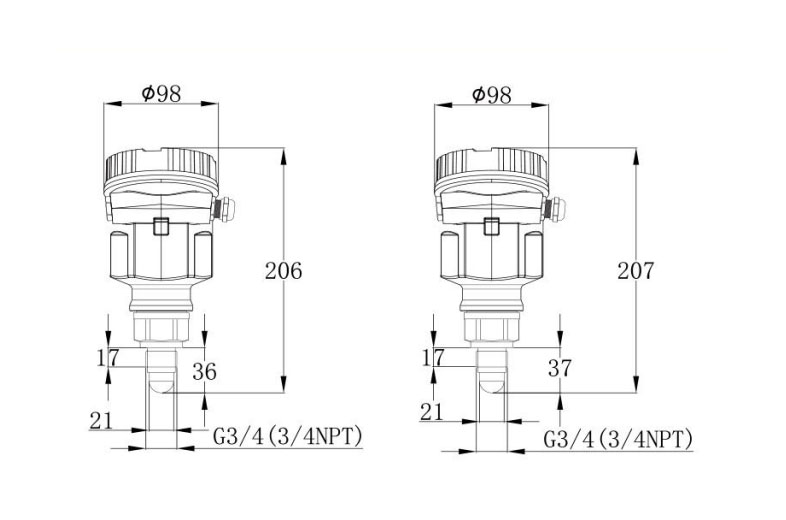

Antenna form：AP、AM Case：A，B， | Antenna form：FP/FM、FT Case：A，B，D |
 |  |
| HLR63 | HLR63 |

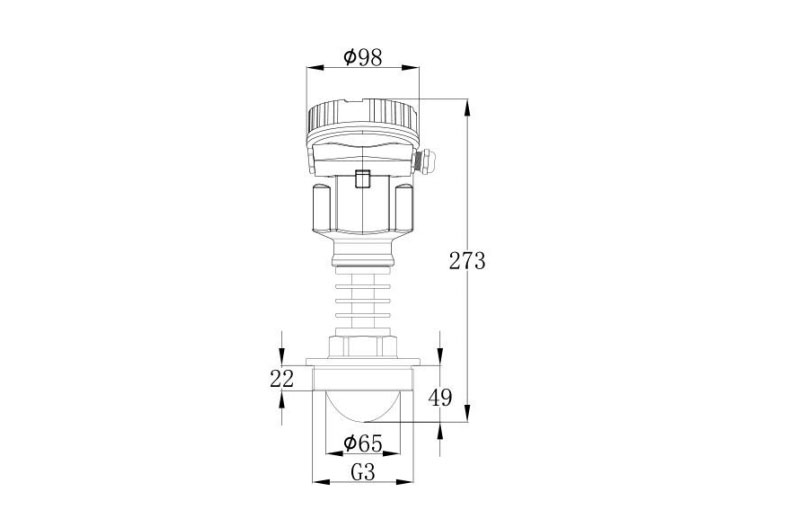

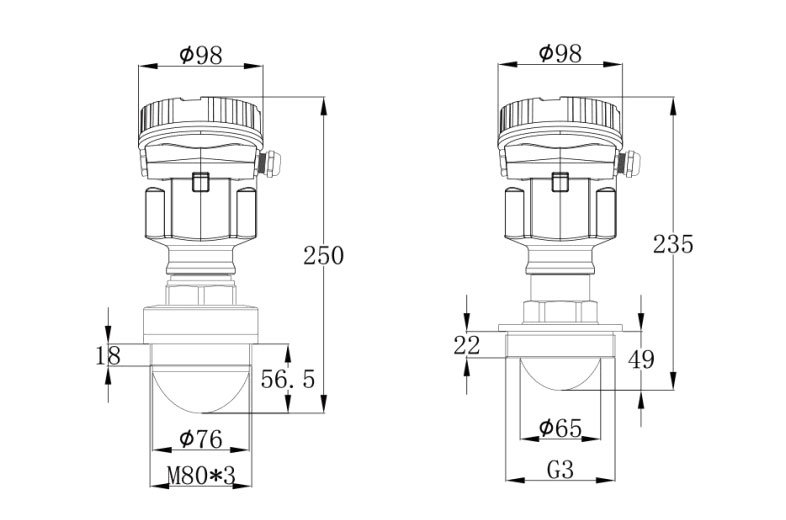

Antenna form：GP、GM Case：A，B， | Antenna form：GT Case：A，B，D |
 |  |

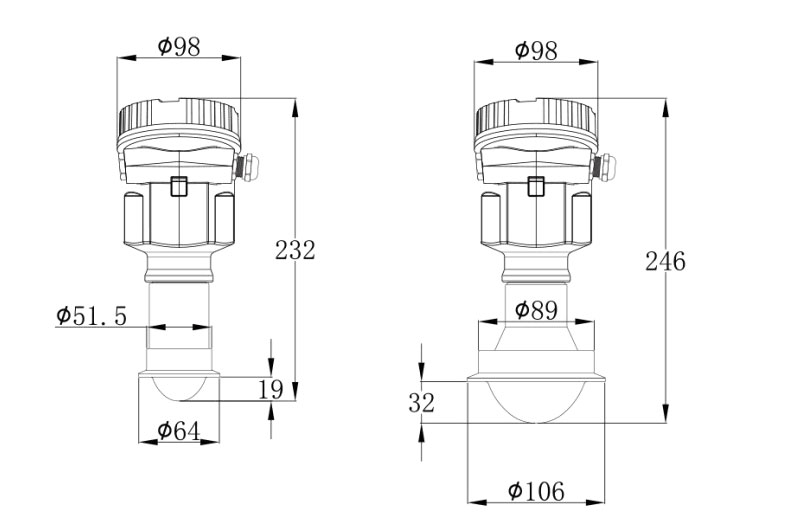

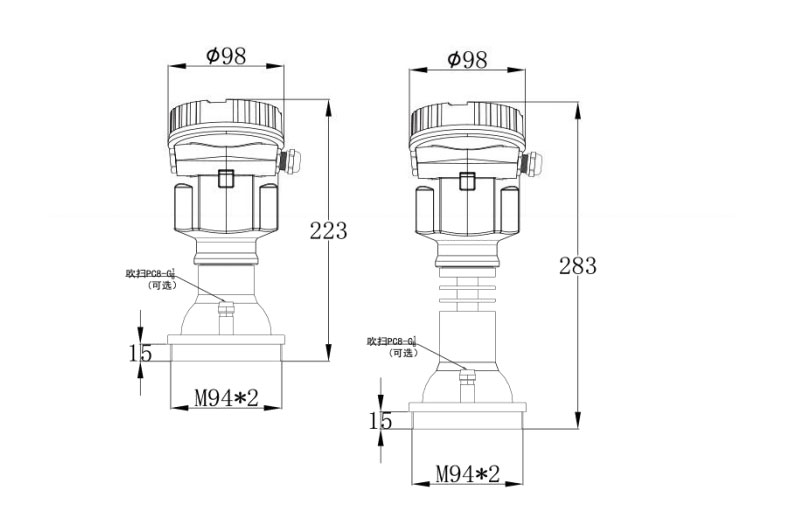

| HLR64 | HLR64 |

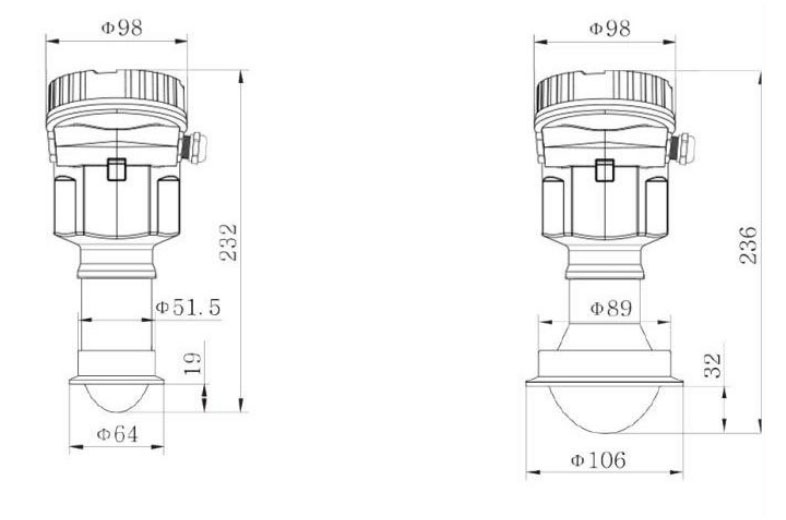

Antenna form：KW、KQ Case： | Antenna form：KW、KQ Case：A，B，D |
 |  |

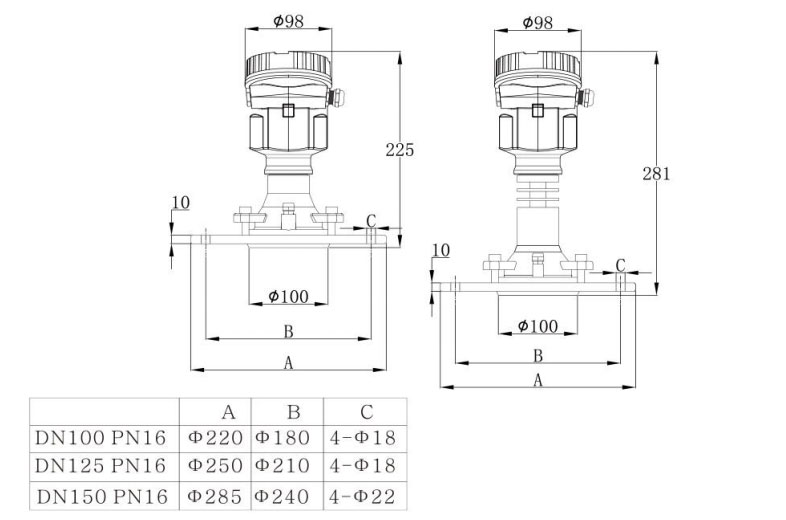

| HLR65 | HLR65 |
Antenna form：MW/NW、RW case：A，B， | Antenna form：JG、LG case：A，B，D |
 |  |

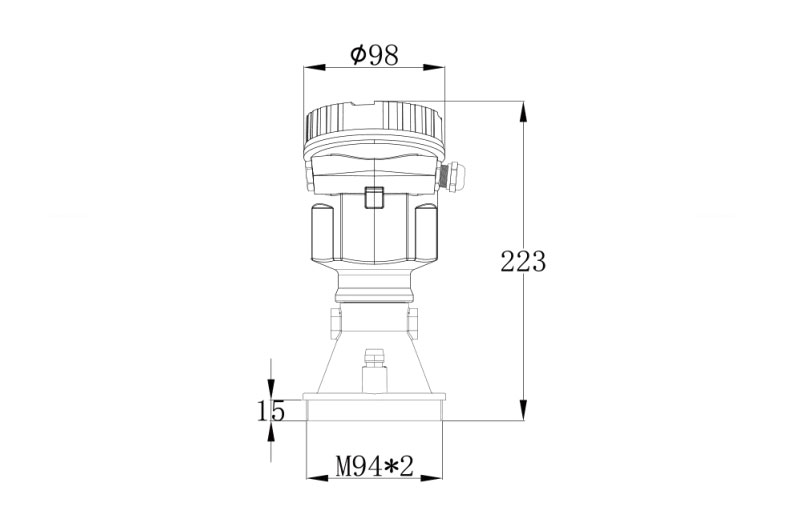

| HLR65 | |
Antenna form：HG case：A，B，D | |
 |
