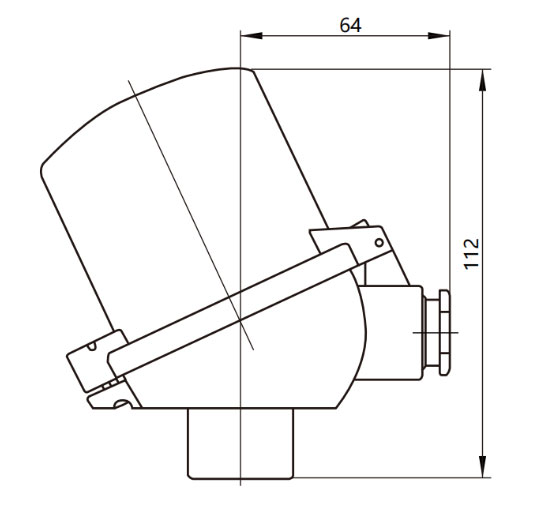

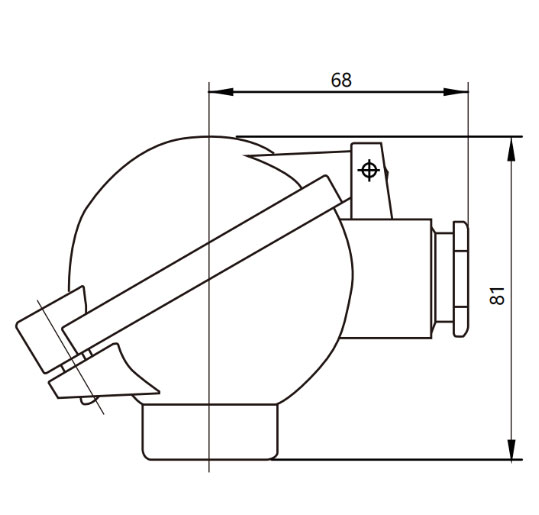

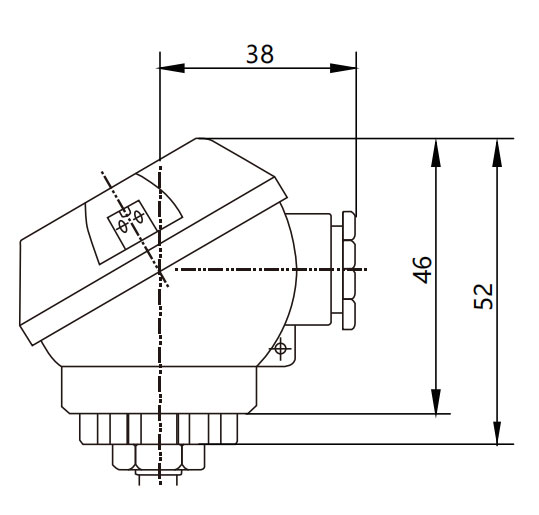

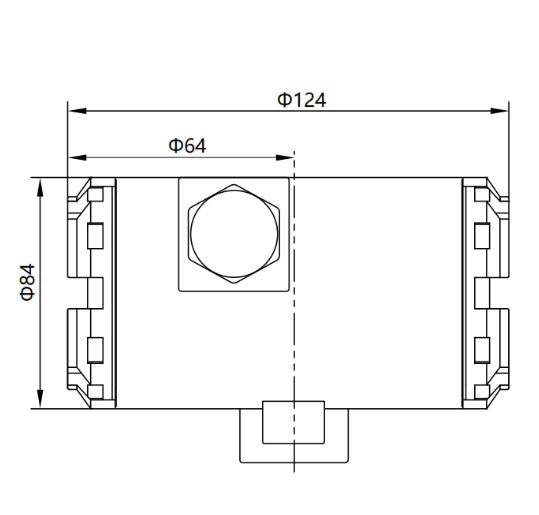

Terminal head
- Aluminium box and temperature transmitter can be installed in JIS standard

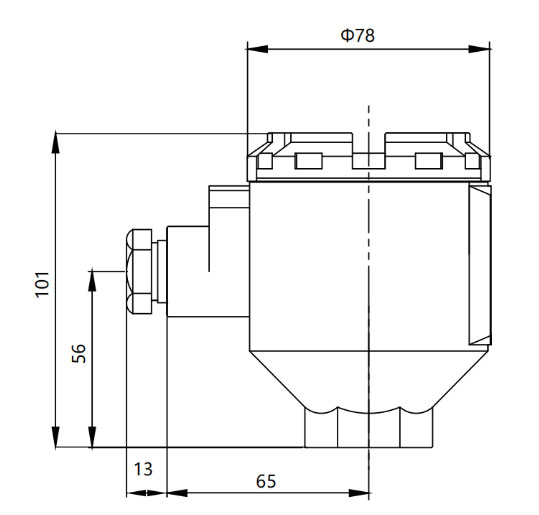

- Explosion-proof aluminium box (EEx d IIC T5)
- Explosion-proof stainless steel box (EEx d IIC T6)

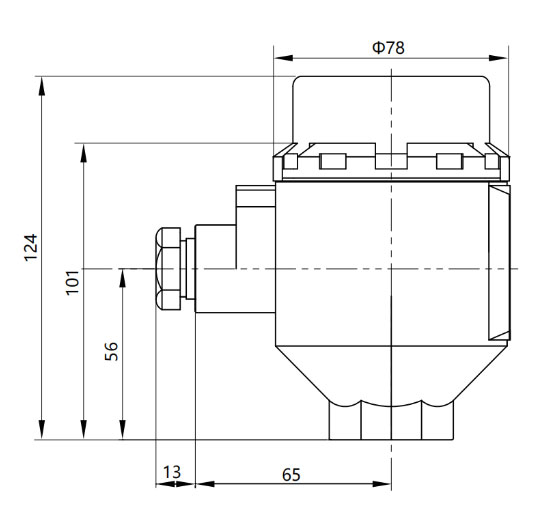

- Field diaplay LED/LCD Explosion-proof temperature transmitters
- Caution: reduced ambient temperature when using transmitters

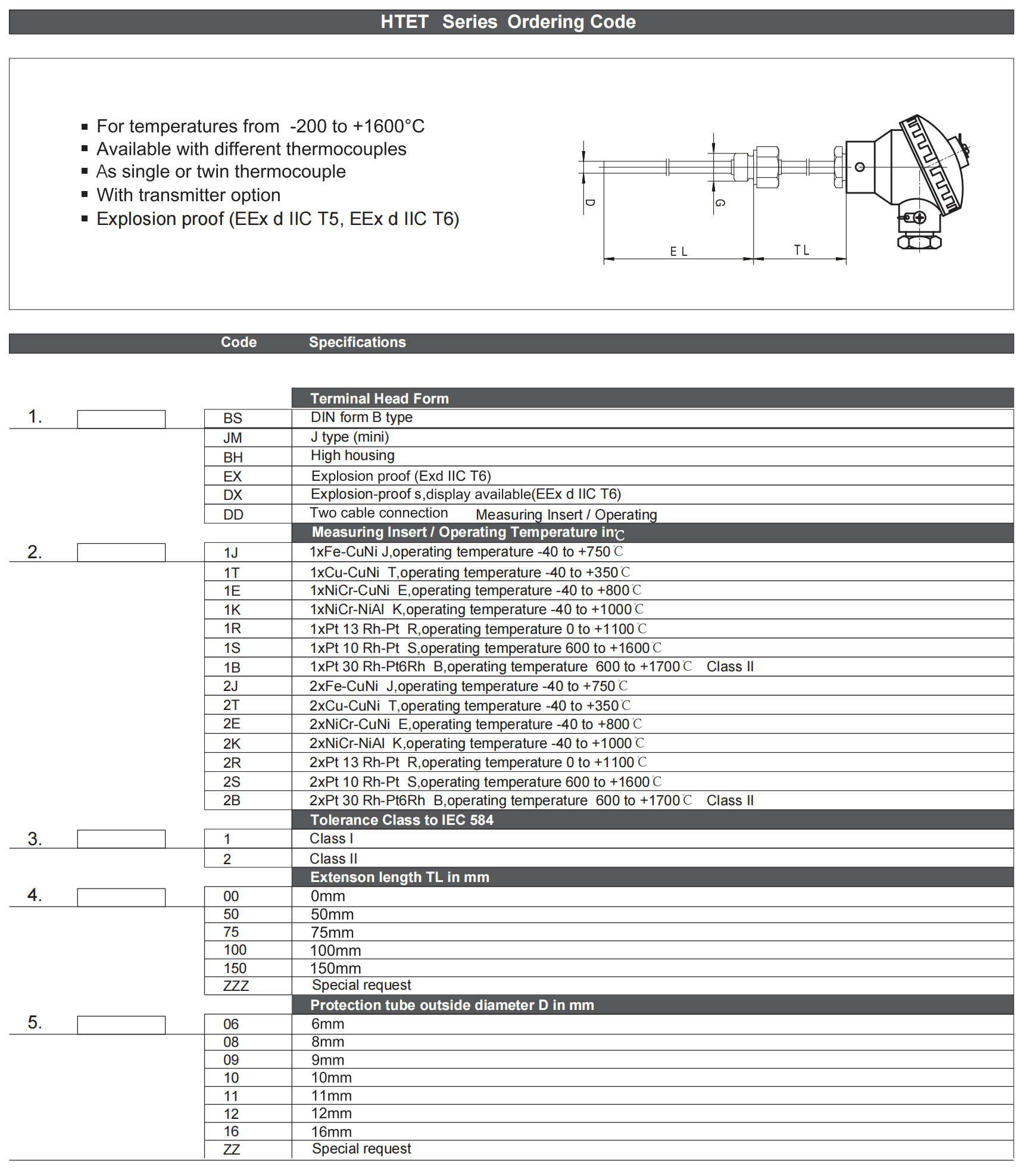

Measuring insert
insulated assembly
- 1xFe-CuNi J,operating temperature -40 to +750℃
- 1xCu-CuNi T,operating temperature -40 to +350℃
- 1xNiCr-CuNi E,operating temperature -40 to +800℃
- 1xNiCr-NiAl K,operating temperature -40 to +1000℃
- 1xPt 13 Rh-Pt R,operating temperature 0 to +1100℃
- 1xPt 10 Rh-Pt S,operating temperature 600 to +1600℃- 1xPt 30 Rh-Pt6Rh B,operating temperature 600 to +1700℃ Class II
- 2xFe-CuNi J,operating temperature -40 to +750℃
- 2xCu-CuNi T,operating temperature -40 to +350℃
- 2xNiCr-CuNi E,operating temperature -40 to +800℃
- 2xNiCr-NiAl K,operating temperature -40 to +1000℃
- 2xPt 13 Rh-Pt R,operating temperature 0 to +1100℃
- 2xPt 10 Rh-Pt S,operating temperature 600 to +1600℃
- 2xPt 30 Rh-Pt6Rh B,operating temperature 600 to +1700℃ Class II

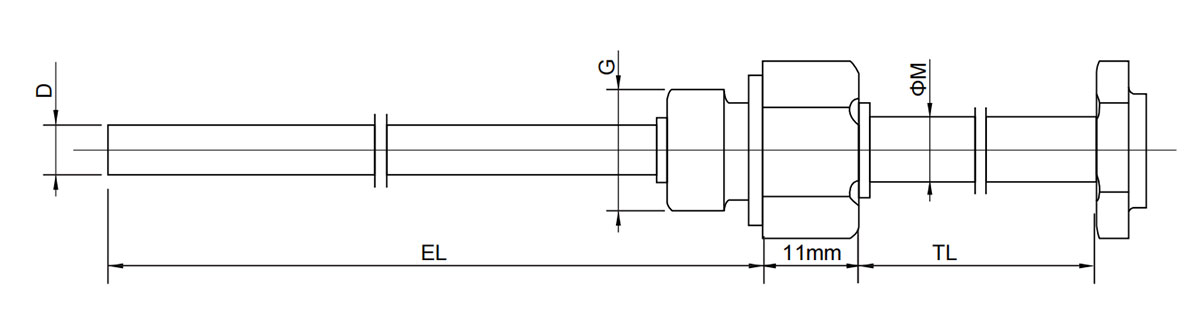

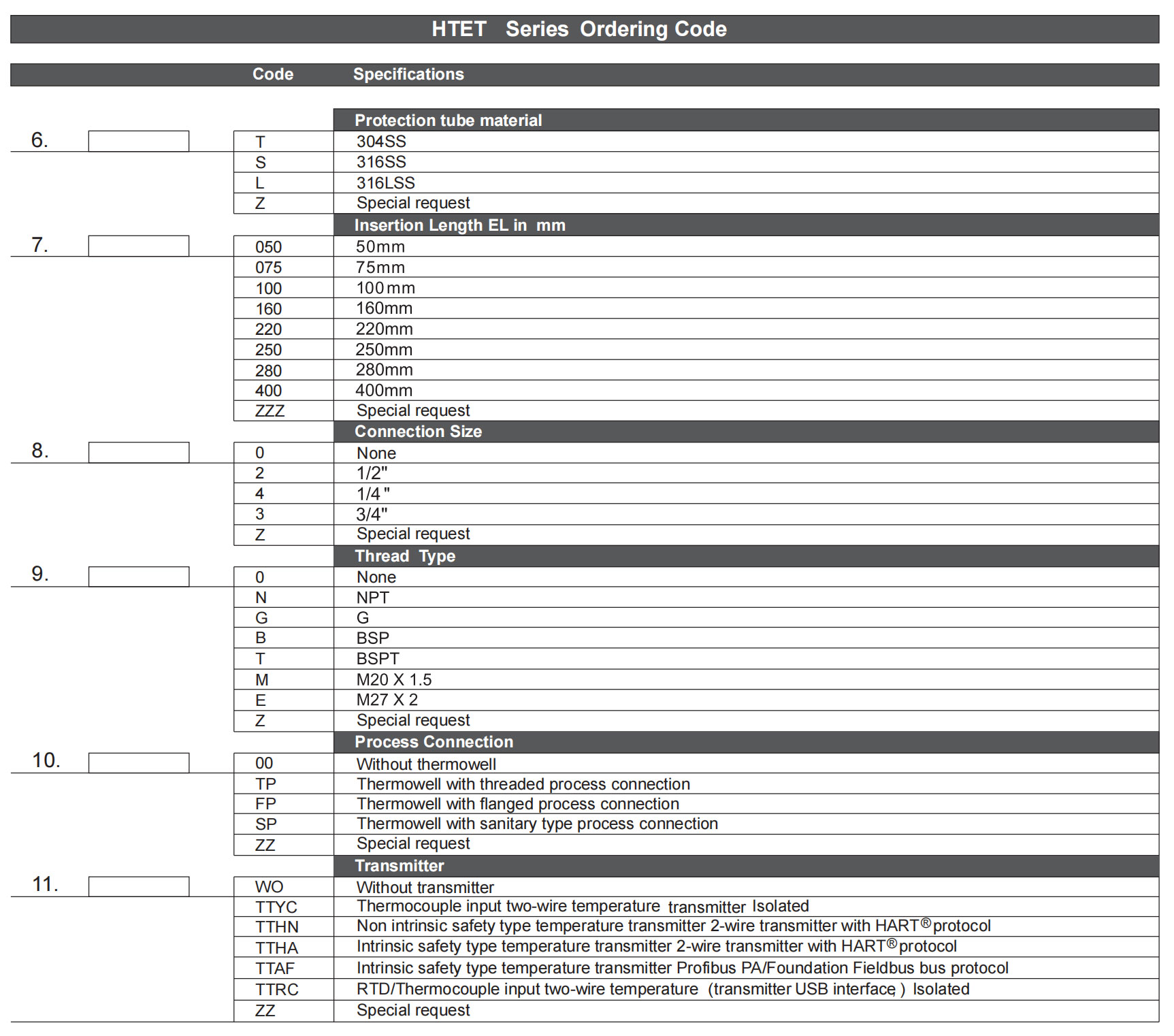

Protection tube
- Material: 304SS, 316SS, 316Lss
- Outside diameter:
- Standard:9mm, 11mm, 12mm
- Option: 6mm, 8mm, 10mm, 16mm
Process connection
-Without thermowell
-Thermowell with threaded process connection
-Thermowell with flanged process connection
-Thermowell with sanitary type process connection
-Please refer to catalogues of thermowells
Transmitter
- Isolated smart temperature transmitter - Thermocouple input
- Isolated smart temperature transmitter - RTD /Thermocouple input
- Non Intrinsic safety type temperature transmitter 2-wire transmitter with HART® protocol
- Intrinsic safety type temperature transmitter 2-wire transmitter with HART® protocol
- Intrinsic safety type temperature transmitter Profibus PA/Foundation
- Fieldbus bus protocol
Accessories
Thermo well
