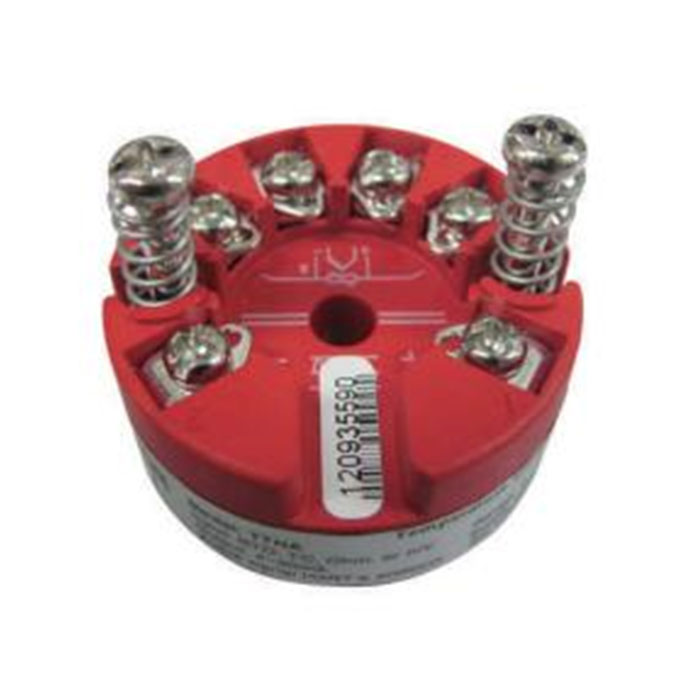

HTHA RTD Thermocouple Ohm MV Input Head-mounted HART® 4~20mA Temperature Transmitter

• RTD, TC, Ohm, or mV input

• DlN form B sensor head mounting

• Full compatibility with worldwide HART® devices

• Standardized supervision with standardized software

• Fully configurable through the current loop

• Galvanic surge protection

Availability:

Quantity:



Inquire Add to Basket

Model:
HTHA
Brand:
ZYZL
Code:
ZYZL-HTHA

Thermocouple RTD PT100 PT1000 HART® Communication thermocouple temperature transmitter RTD TC Temperature Transmitter Intrinsic Safety RTD TC Temperature Transmitter thermal resistance 4~20mA output

Description

Specifications

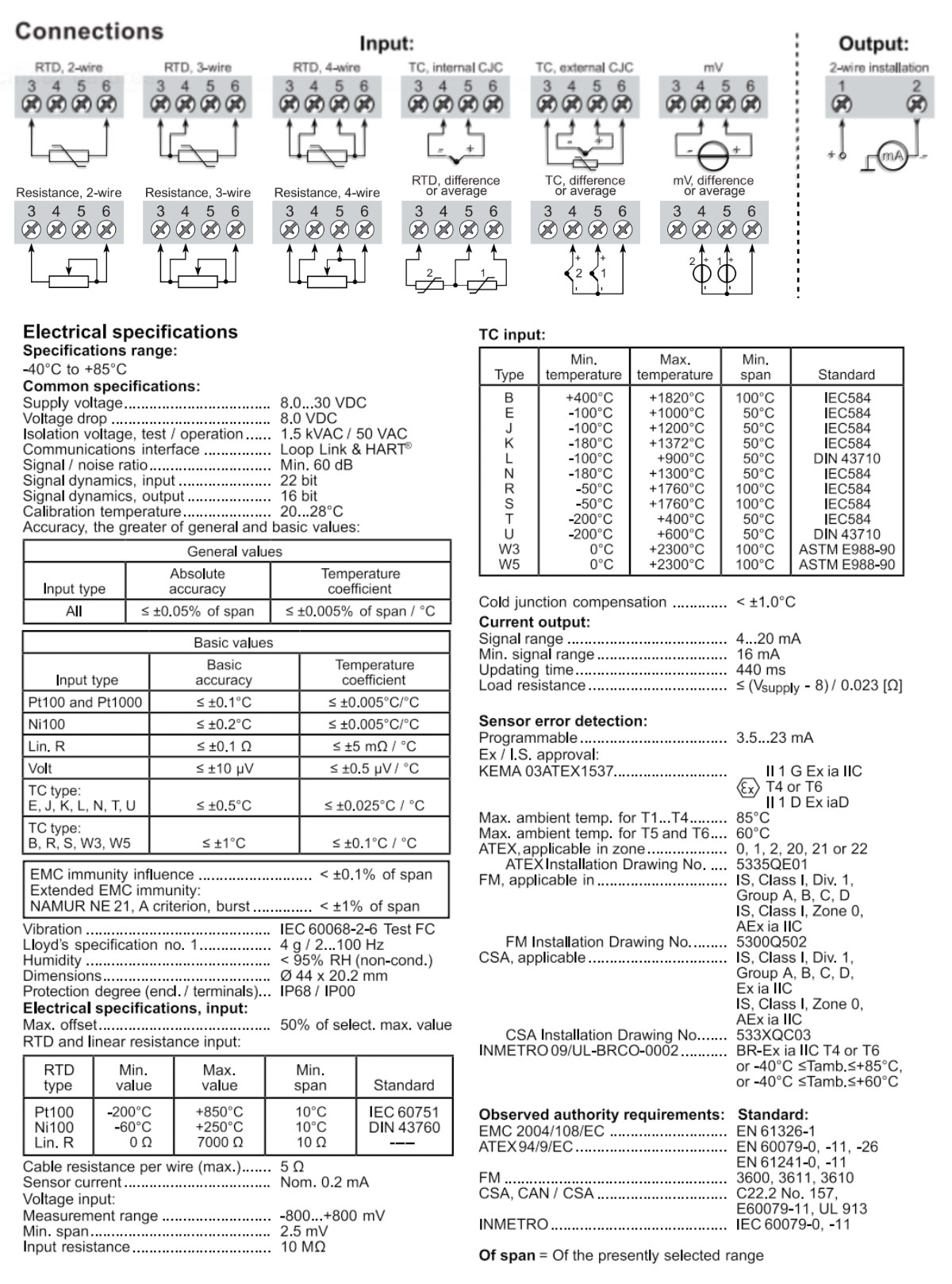

Connections

Download

Temperature Transmitter Measuring principle

Head-mounted temperature transmitter with RTD or TC input and extremely compact design, convert RTD, TC, Ohm, or mV input signal to analog or digital signal, 4~20mA, 0~10V, HART® communication etc.

Temperature Transmitter Feature

RTD, TC, Ohm, or mV input

Extremely high measurement accuracy

HART® communication

Galvanic isolation

For DlN form B sensor head mounting

Temperature Transmitter Application

ZYZL-HTHA is a reliable, long-term stable, single-channel analog or digital temperature transmitter for thermometers with terminal head Form B suited for use in Intrinsic Safety. Individual transmitter-sensor matching with Callendar-Van Dusen linearization further improves your temperature measurement accuracy for RTD sensors. Push-in terminals for quick wiring facilitate installation. The device is available pre-configured or can easily be parametrized using free software tools.

Highly accurate and reliable temperature measurement for various industrial and hygienic process applications
Certified for use in intrinsic safety
Input: Single RTD sensor input for Pt100 or Pt1000 (2-/3- or 4-wire) sensors, thermocouple
Output: 4 to 20 mA analog output, HART® communication
Installation in terminal heads Form B

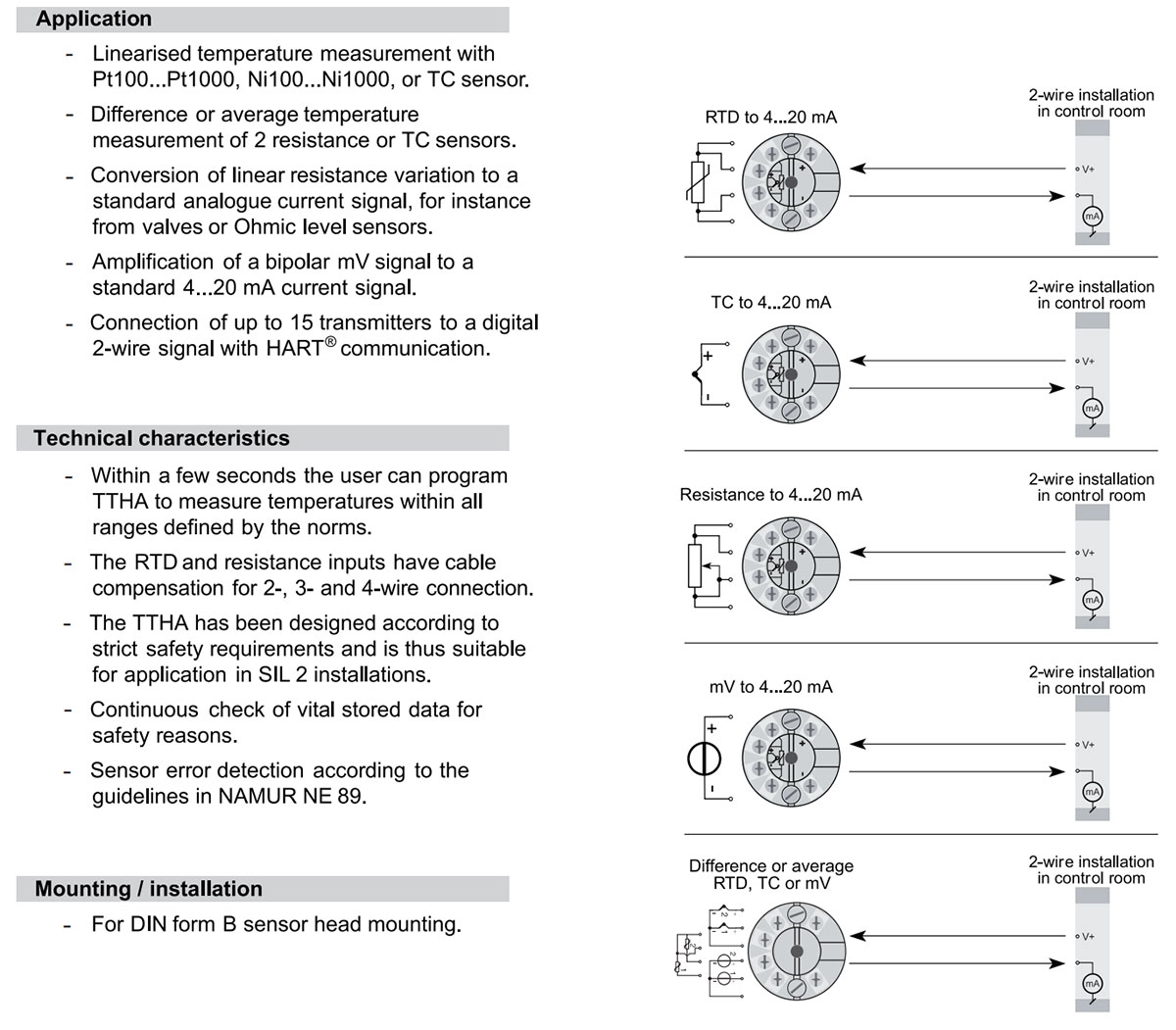

Application
