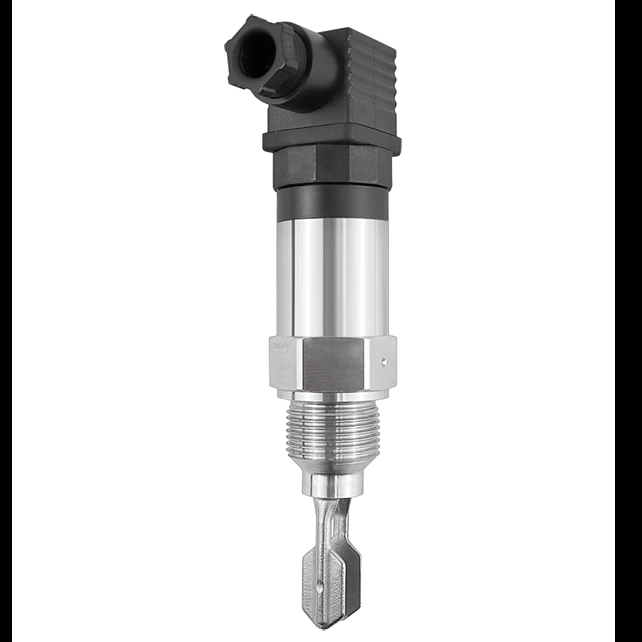

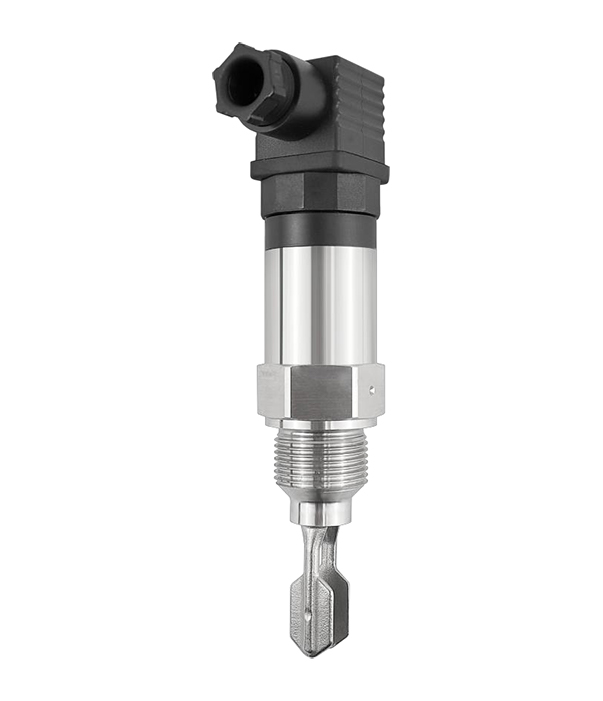

HTL20 Vibrating Level Switch

Compact Design, the total length 160.5mm, the maximum diameter 31.5mm, the fork length only 38mm
Especially suitable for liquid limit measurement of pipelines and narrow Spaces

The medium density can be measured as low as 0.7g/cm³

Economic and practical, cost-effective

Free from foam, bubbles, viscosity, vibration and liquid properties

The design based on the change of detection frequency has high reliability

Simple operation, safe and reliable, strong versatility

Availability:

Quantity:



Inquire Add to Basket

Model:
HTL20
Brand:
ZYZL
Code:
ZYZL-HTL20

Vibrating Fork Level Switch Level Detectors Economical limit control switch Solids and liquid level switch vibration level switch Level sensor level transmitter level transducer Level Switch Level measurement

Description

Specifications

Dimensions

Ordering Code

Download

Working Principle

The HTL20 vibrating fork level detectors is based on the design principle of detecting the change of vibration frequency when the tuning fork body is immersed in the medium. That is, when the fork is in contact with the measured liquid, the resonant frequency of the fork is significantly reduced, and the change of vibration frequency is directly reflected in the output signal of the piezoelectric detection device. The detection circuit determines the change of the required rate and outputs a switching signal.

HTL20 vibrating fork level detectors is an economical limit control switch specially designed for liquid limit measurement. The overall structure of the product is small and lightweight, the total length of the product is 160.5mm, the maximum diameter is 31.5mm, and the length of the tuning fork is only 38mm. This product is not only suitable for containers, tanks, tank and foam, bubble, viscous liquid and vibration interference level limit measurement, but also suitable for small containers and small space around the tank. Also based on the design principle of detecting the change of vibration frequency when the fork is immersed in the medium, the product can measure the density of the medium as low as 0.7g/cm³.

Application Scope

HTL20 vibrating fork level detectors is specially used for measuring the level limit of containers, tanks and various pipelines, widely used in water conservancy, chemical, environmental protection, food, medicine and other industries.

Benefits

(1) Compact Design, the total length 160.5mm, the maximum diameter 31.5mm, the fork length only 38mm;

(2) Especially suitable for liquid limit measurement of pipelines and narrow Spaces;

(3) The medium density can be measured as low as 0.7g/cm³;

(4) Economic and practical, cost-effective;

(5) Free from foam, bubbles, viscosity, vibration and liquid properties;

(6) The design based on the change of detection frequency has high reliability;

(7) Simple operation, safe and reliable, strong versatility

Case Plastic	PC
Process connection	Thread 316L
Probe and pipe	fork 316L
Surface finish degree	- Standard type: 3μm - Sanitary type: < 0.8μm; < 0.3μm
Meter weight	250g
Measurement frequency	about 1100Hz
Environmental condition	- Ambient temperature on the shell: -40~70℃ - Storage and transportation temperature: -40~80℃
Process condition	- Process pressure: -1~40bar - Process temperature (normal temperature type) : -50~100℃ - Process temperature (high temperature type) : -50~150℃
Sensitivity (minimum measurement density)	- Density: > 0.7g/cm3
High-low conversion mode	- High: Overflow protection - Low: Dry operation protection
Switching delay	- Contact material: 0.5s - No material: 1s
Measurement accuracy	- Measurement deviation: ±1mm - Delay: 3.0±0.5mm - Repeatability: 0.1mm
Output mode	- Relay rated load: AC125V 0.5A; DC 24V 1A - NPN/PNP: load current < 300mA; Voltage drop < 1.6V
Operating voltage	- Relay: 85~253VAC/10~35VDC - NPN/PNP : 10~35VDC - Electrical protection measure
Class of protection	- M12× 1 : IP66/67 - Valve connection head: IP65

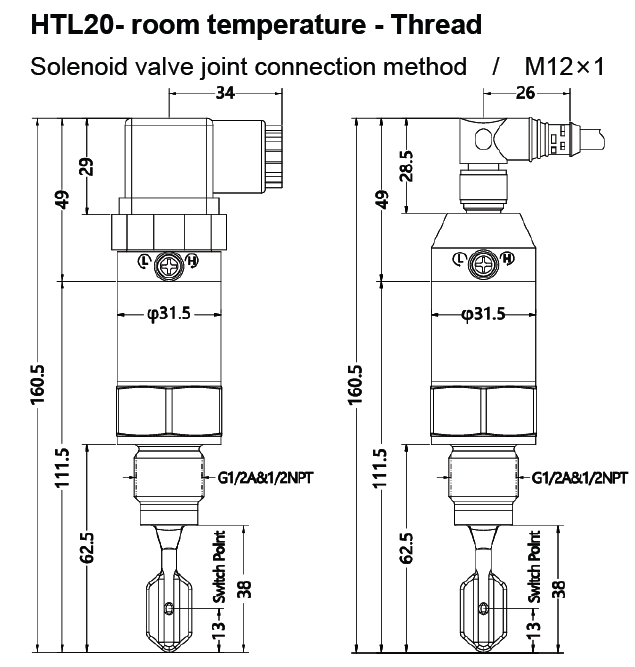

Level Switch_Thread

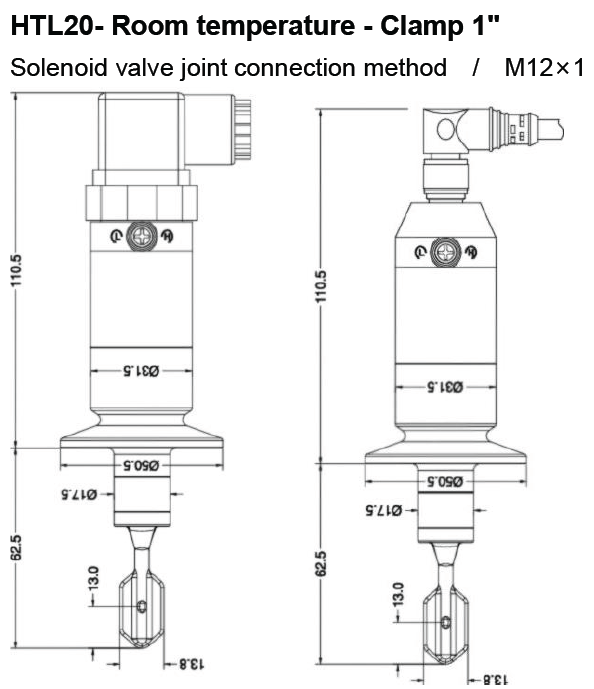

Level Switch_THL20_Clamp1

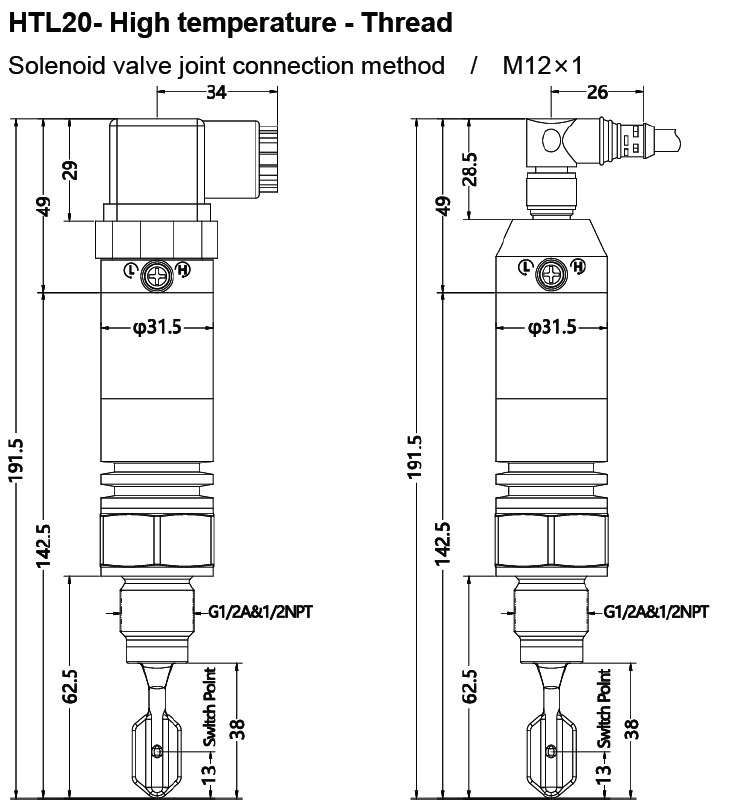

High Temp Thread

Attestation
	P Non-explosion-proof occasions
	Y Customer custom
Process temperature
		C （-50～100℃）
		H （-50～150℃）
Procedure linkage
			A Thread, G ½, " A
			B Thread, G ¾, " A
			C Thread, G 1 " A
			D Thread G1 ", 316L, install> weld attachment
			E Thread ½ " NPT
			F Thread ¾ " NPT
			G Thread # 1 " NPT
			H 1 " Hoop
			Y Customer custom
Switched output
				2 Transistor (NPN / PNP) 10-35 VDC
				4 Relay (SPST, optional open / closed) 10~35V DC
				5 Relay (SPST, optional open / closed) 85~253V AC
Cable inlet
					P Pg11
					M M12×1 (standard 2m cable)
					9 Customer custom
Depth of penetration
						S Standard type (62mm)
						L Lengtended (62 <L <260mm)
						Y Customer custom
Special option
							XXX Software release
