Here are comprehensive tips and technical knowledge for selecting, installing, and maintaining FMCW (Frequency-Modulated Continuous Wave) radar level transmitters, widely considered the most accurate technology for continuous level measurement.

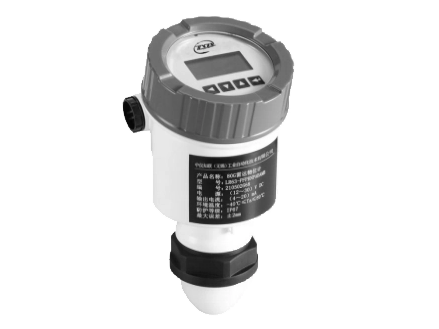

What is FMCW Radar?
FMCW radar emits a continuous microwave signal whose frequency increases linearly over time (a "chirp"). It compares the frequency difference between the emitted signal and the echo reflected from the product surface. This difference is directly proportional to the distance, enabling highly accurate measurement.
Key Advantage over Pulse Radar: Superior signal-to-noise ratio and accuracy, making it ideal for low-dielectric materials, long ranges, and challenging conditions.
1. Key Selection Criteria
Parameter | Consideration | Recommendation |
Frequency | 26 GHz (K-Band) | Standard for most liquids and solids. Good beam concentration. |
80 GHz (W-Band) | State-of-the-art. Extremely focused beam, minimizes false echoes from nozzles and obstacles. Ideal for small tanks, narrow nozzles, and applications with internal obstructions. | |
Antenna Type | Horn / Parabolic | Strong signal, long range. Good for solid and dusty environments. |
Rod / Probe | Good for liquids, smaller nozzles. | |
Patch / Planar | Low-cost, compact, easy to clean (PTFE seal). Standard for chemicals, food & beverage. | |
Process Connection | Flange (DN50, DN80, etc.) | Standard. Ensure material compatibility (SS316L, Alloy C22). |
Threaded (1.5"NPT, G1½") | For smaller tanks and pressures <40 bar. | |
Signal Output | 4-20mA HART | Analog control loop + digital configuration. |
Foundation Fieldbus, Profibus PA | Digital bus networks for plant-wide integration. |
2. Crucial Installation Tips ("Success is 90% Installation")
2.1 Antenna Positioning is Critical:
Keep Away from Walls | Maintain a minimum distance of 300mm (>12") from the tank wall. |
Avoid Inlets & Obstacles | Do not aim the antenna at inlet streams, agitators, ladders, or any internal structures. The radar beam should have a clear path to the material. |
Nozzle Length | Ensure the nozzle is as short and wide as possible. For long nozzles, use a still-pipe (see below). |
2.2 The "X" Marks the Spot:
The device must be installed perpendicular to the product surface. Any tilt will deflect the beam and cause measurement errors.
2.3 Use a Still-Pipe (Bypass Chamber) for:
* Agitated tanks.
* Tanks with heavy vortexing (e.g., liquids with high viscosity).
* Very low dielectric constants (< 2.0).
* Design Rules for Still-Pipes:
* Diameter: ≥ 150mm (6").
* Slots: Cut vertical slots (width ~5% of pipe diameter) or drill holes along the pipe facing away from disturbances.
* Bottom: Open or angled cut (45°).
* Material: Stainless steel is preferred.
80 GHz Advantage:
The highly focused beam of an 80 GHz transmitter is less likely to interfere with obstacles, making installation much more forgiving and often eliminating the need for still-pipes.
3. Configuration & Commissioning Best Practices
Echo Curve Analysis:
This is the most powerful diagnostic tool. Learn to read the echo curve (graph of signal strength vs. distance).
Identify the true echo | The highest, stable peak, corresponding to the product level. |
Identify false echoes | Fixed peaks from nozzles, welds, ladders, etc. |
Use "echo masking" or "false echo suppression" | Teach the transmitter to ignore these fixed false echoes. |
Key Parameters to Set:
Dielectric Constant (DK) | Set accurately for low-DK materials (< 10, like LNG, solvents). Less critical for water-based liquids (DK ~80). |
Damping | Increase this value in applications with surface turbulence to stabilize the output signal. |
Response Time | Set appropriately. Fast for process control, slower for inventory management. |
4. Application-Specific Advice
Application | Challenge | Solution & Tip |
Low Dielectric Materials (e.g., LNG, Propylene, Diesel) | Weak signal reflection. | Use 80 GHz radar. The higher energy density provides a stronger return signal. Ensure a high-quality installation with a still-pipe. |
Boiling or Turbulent Surfaces | Signal scattering, weak or noisy echo. | Use a still-pipe: Increase damping in the configuration. |
Solid Materials (Silos) | Dust generation, steep angles of repose. | Use a horn antenna (e.g., 4" or 6") to penetrate dust. Point the antenna towards the center of the pile during filling. |
Vacuum or High-Pressure | Process conditions affect signal propagation. | Ensure the transmitter is rated for the pressure/vacuum. Technology itself is largely unaffected by pressure changes. |
Coatings (Sticky Liquids) | Material buildup on the antenna. | Use a Non-Stick Antenna: PTFE-coated planar antenna (e.g., for molasses, syrup). Use a Purge Connection: Install an air purge kit to keep the antenna clean. |
5. Maintenance & Troubleshooting
Problem | Possible Cause | Action |
Erratic or Jumping Level | Agitation, splashing, or false echoes. | Check echo curve. Use a still-pipe. Increase damping. Suppress false echoes. |
Signal Too Weak | Low DK material, antenna coating, or incorrect range. | Check for buildup on antenna. Verify DK setting. For low DK, use 80 GHz. |
Fixed Value / No Change | Lost echo or echo locked onto a false target. | Run diagnostics/echo curve. Check for new obstructions or a changed process condition (e.g., empty tank). |
Inaccurate Reading | Antenna tilt, incorrect reference point (empty tank calibration). | Verify mechanical installation is perpendicular. Re-teach the empty and full points (lower and upper range values). |
Pro Tip: Schedule a periodic check of the echo curve (even if the measurement seems good) to catch potential issues like early antenna coating or new obstructions.
