Today we would offer a structured guide covering key tips and technical knowledge for ultrasonic flow meters, including selection, installation, and maintenance best practices:

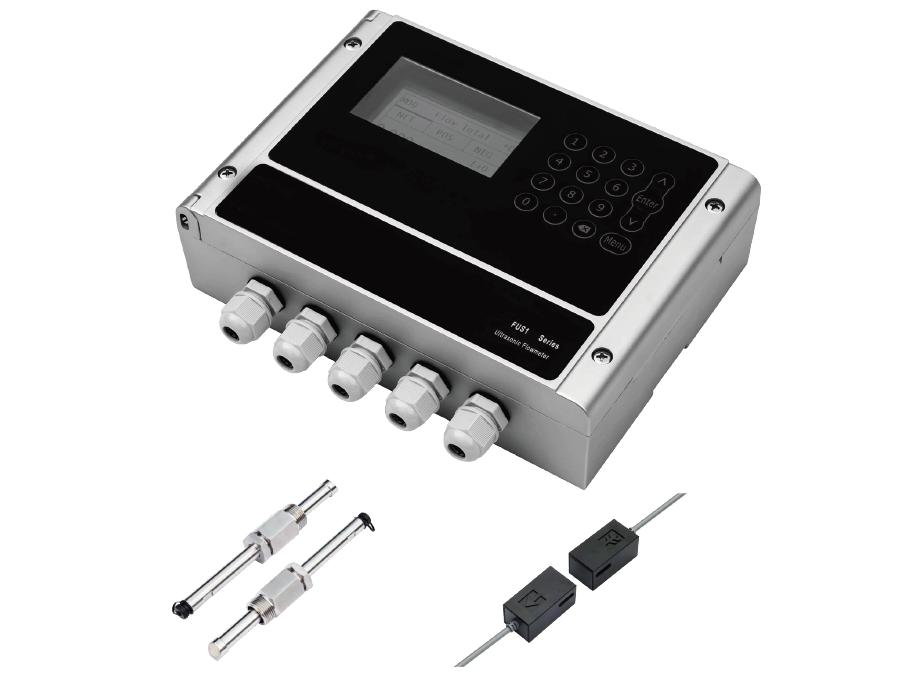

1. How Do Ultrasonic Flow Meters Work
Principle: Measures flow velocity by transmitting ultrasonic pulses diagonally across the pipe and calculating the time difference (transit-time difference) or frequency shift (Doppler effect) caused by fluid movement.
Types | Transit-Time Meters: For clean liquids (water, oils, chemicals). |
Doppler Meters: For slurries, aerated liquids, or fluids with particles/bubbles. |
2. Selection Tips
A. Fluid Compatibility
Fluid Type | Recommended Meter | Notes |
Clean liquids | Transit-time | ±0.5–1% accuracy |
Slurries, sewage | Doppler | ±1–5% accuracy |
Corrosive chemicals | Clamp-on (non-intrusive) | Avoid wetted sensors |
B. Pipe Conditions
Pipe Material | Works on metal, plastic, or composite pipes. |
Lining Compatibility | Avoid acoustic linings (e.g., foam-insulated pipes). |
Pipe Size | Typically DN15–DN6000 (clamp-on variants). |
C. Output & Communication
Analog | 4–20mA, 0–10V for PLC integration. |
Digital | Modbus, HART, PROFIBUS for smart systems. |
Data Logging | Built-in for batch processes. |
3. Installation Best Practices
A. Sensor Positioning
Upstream Straight Run | ≥10D (pipe diameters) after disturbances (pumps, elbows). |
Downstream Straight Run | ≥5D |
Avoid | Air pockets (top of pipe) or sediment (bottom of pipe). |
B. Coupling & Alignment
Couplant Gel | Essential for clamp-on models (ensures acoustic transmission). |
Sensor Spacing | Precisely match manufacturer’s specifications (varies by pipe size). |
Alignment | Sensors must be diametrically opposite (for clamp-on types). |
C. Pipe Preparation
Remove coatings/rust | Ensure smooth pipe surface for clamp-on sensors. |
Use pipe rings | For permanent installation on curved surfaces. |
4. Calibration & Commissioning
Zero Calibration | Perform with no flow (for transit-time meters). |
Profile Configuration | Input pipe material, diameter, and fluid properties. |
Field Verification | Compare with a master meter or bucket test. |
5. Common Issues & Troubleshooting
Issue | Possible Cause | Solution |
No signal | Poor coupling, air bubbles | Reapply couplant, purge air |
Inaccurate reading | Incorrect pipe parameters | Re-enter pipe size/material |
Signal dropout | Low fluid velocity | Ensure velocity >0.3 m/s |
Coating interference | Internal scale/build-up | Use intrusive sensors or clean pipe |
6. Maintenance Tips
Check couplant | Reapply annually for clamp-on meters. |
Verify calibration | Every 12–24 months (depending on criticality). |
Inspect sensors | Clean wetted sensors in dirty applications. |
7. Applications by Industry
Water/Wastewater | Clamp-on meters for large pipes. |
Oil & Gas | Custody transfer (with high-accuracy calibration). |
Chemical | Non-intrusive meters for corrosive fluids. |
HVAC | Energy monitoring in chilled/hot water systems. |
Key Takeaway
Ultrasonic flow meters offer non-intrusive, versatile measurement but require careful installation and fluid compatibility checks. Always:
1. Verify fluid properties (clean vs. slurry).
2. Follow pipe straight-run requirements.
3. Use high-quality couplant for clamp-on types.
For specific use cases (e.g., high-temperature steam, multiphase flows), consult us for customized solutions.
Do you need a model recommendation for ultrasonic flow meter?
Please specify fluid type, flow rate, pipe size, and temperature, ZYZL Instruments will offer total flow measurements solution for your applications.
