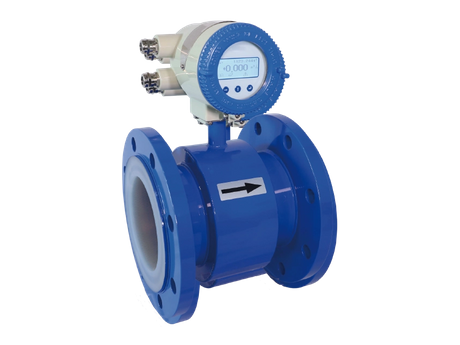

Today we offer some key tips for selecting, installing, and maintaining electromagnetic flow meters (EMFs) to ensure optimal performance in industrial applications:
1. Selection Tips
Factor | Recommendation |
Fluid Conductivity | Minimum 1μS/cm (ultra-pure water needs special models). |
Pipe Size | DN10 to DN2000; larger sizes may require insertion-type EMFs. |
Lining Material | PTFE: Chemicals, acids Rubber: Slurries, abrasives |
Electrode Material | 316L: Standard Hastelloy C-276: Corrosive media |
Output | 4-20mA + pulse (standard); Modbus/Profibus for smart systems. |
2. Installation Best Practices
Flow Profile | ✅ 10D straight pipe upstream, 5D downstream (avoid elbows/valves nearby). ❌ Never install after pumps or partial valves (causes turbulence). |
Orientation | - Horizontal pipes: Electrodes at 3° or 9° clock position(avoid air bubbles at top). - Vertical pipes: Flow direction upward (prevents sediment buildup). |
Grounding | - Use grounding rings for non-conductive pipes (e.g., PVC). - Avoid sharing ground with motors(causes EMI). |
3. Calibration & Verification
Wet calibration (Preferred) | Use actual fluid for ±0.5% accuracy. |
Dry calibration | For troubleshooting (checks electronics only). |
Zero adjustment | It must be done with fully filled pipe, no flow. |
4. Common Issues & Fixes
Problem | Cause | Solution |
Zero drift | Air bubbles, coating | Purge air, clean electrodes |
Low signal | Low conductivity | Verify fluid ≥5 μS/cm |
Noisy output | Poor grounding, EMI | Install isolator, check cable shielding |
Coating buildup | Slurry/adhesive fluids | Use cleaning electrodes (ultrasonic) |
5. Maintenance Checklist
Monthly | Inspect electrodes for coating. |
Annually | Verify calibration, check liner integrity. |
5-year | Replace liner if cracked/worn. |
Besides, for slurry applications, choose flush-mounted electrodes to minimize buildup.
Do you need a model recommendation?
Please specify fluid type, pipe size, and temperature, ZYZL Instruments will offer total flow measurements solution for your applications.
