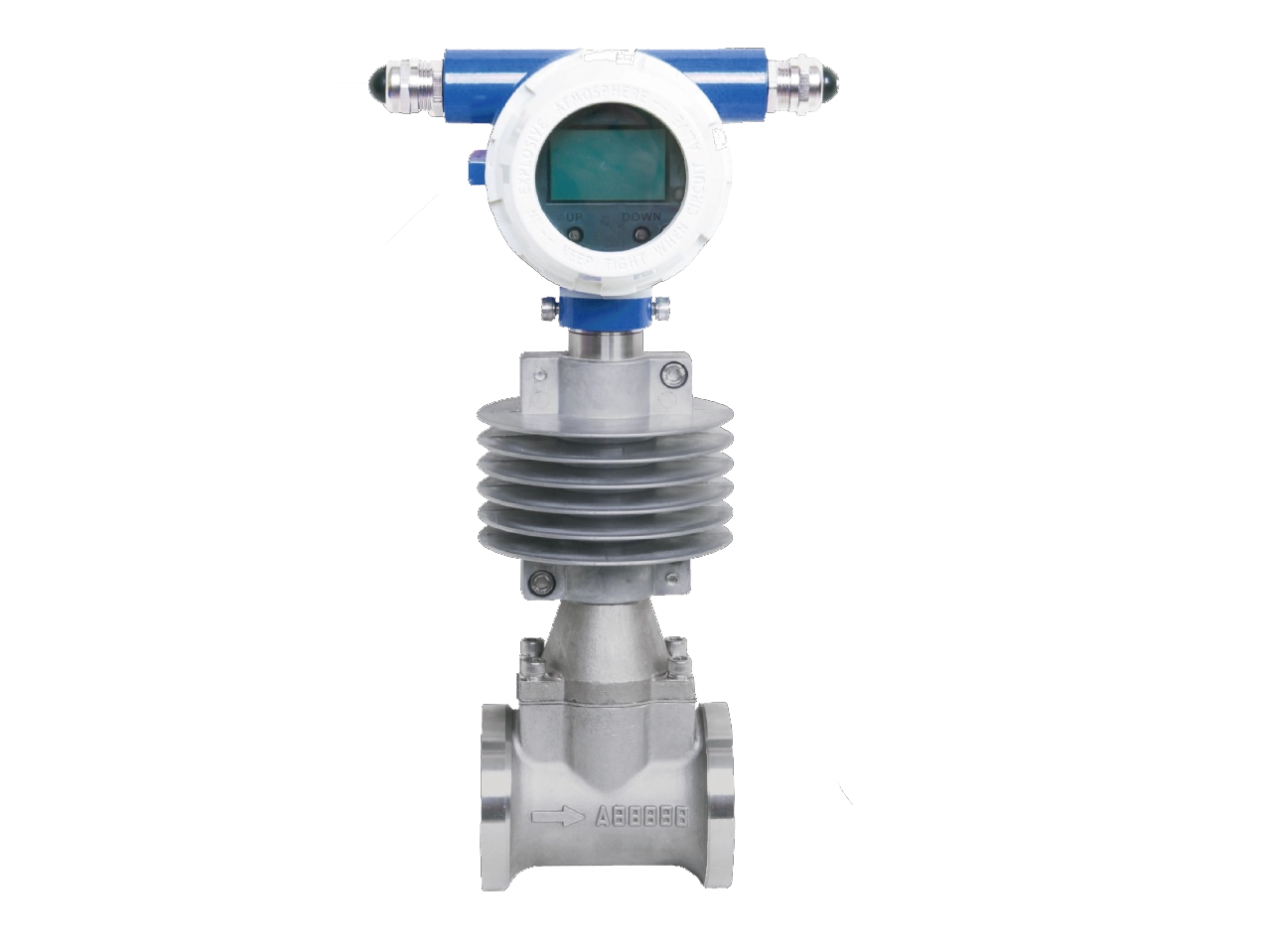

Vortex flow meters measure flow by detecting vortices shed by a bluff body in the fluid stream. They are popular for steam, gas, and liquid applications due to their reliability and low maintenance. Below are essential tips for optimal performance:
1. Selection Guidelines
1.1 Suitable Applications
Best for | Steam (saturated & superheated) |
Clean gases (air, nitrogen, natural gas) | |
Liquids (water, chemicals, light oils) | |
Avoid | Slurries, high-viscosity fluids (>30 cP) |
Pulsating flows (e.g., reciprocating pumps) |
1.2 Key Parameters to Consider
Parameter | Recommendation |
Pipe Size | DN15–DN300 |
Velocity Range | Liquids: 0.3~3 m/s; Gases: 5~60 m/s |
Accuracy | ±1% of reading(liquids); ±1.5% (gas/steam) |
Pressure Rating | Up to 100 bar (check bluff body strength) |
Temperature | -40°C to +400°C |
1.3 Output & Communication
Standard | 4–20mA + pulse output |
Digital | HART, Modbus, Profibus PA |
Optional | Built-in temperature/pressure compensation |
2. Installation Best Practices
2.1 Pipe Requirements
Straight Runs | 10D upstream, 5D downstream (for minimal disturbance) |
20D upstream if flow conditioner is used | |
Avoid | Elbows, valves, or expanders near the meter |
Vertical downward flow (gas applications) |
2.2 Orientation
Liquids | Best in horizontal pipes (full pipe ensures accuracy) |
Gas/Steam | Vertical upward flow prevents liquid accumulation |
2.3 Mounting
- Ensure proper gasket alignment to avoid protrusion into flow path
- Use support brackets for large pipe sizes (DN200+)
3. Common Issues & Solutions
Problem | Cause | Solution |
Low/No Signal | Low flow velocity (<0.3 m/s) | Check min. flow rate or use a smaller meter |
Erratic Readings | Pulsations or vibrations | Install dampeners or relocate meter |
Coating Buildup | Dirty fluids (e.g., steam with impurities) | Use cleanable sensors or periodic maintenance |
Zero Drift | Improper grounding or EMI | Verify grounding, use shielded cables |
4. Maintenance Tips
Annual Checks | Inspect bluff body for erosion/corrosion |
Verify calibration (dry test possible) | |
Cleaning | Use soft brush & mild detergent (avoid abrasive tools) |
For steam apps, flush with clean water periodically |
5. Final Recommendation
For steam measurement, vortex meters are often the best choice due to their durability and no-moving-parts design. Always:
5.1 Match pipe size & fluid velocity range
5.2 Ensure proper straight-run piping
5.3 Select a model with temperature compensation for gas/steam
