Today we would share comprehensive guide with tips and technical knowledge for selecting, installing, and maintaining ultrasonic level transmitters, designed for engineers and technicians.

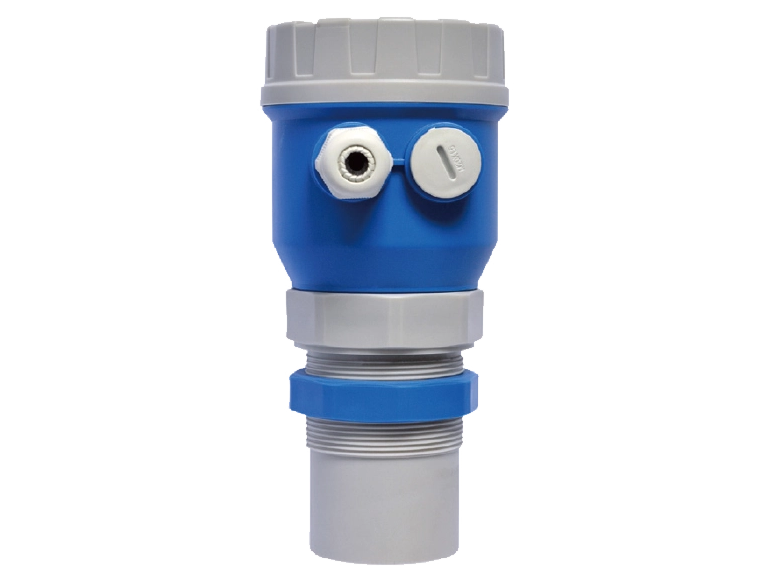

1. How do Ultrasonic Level Transmitters Work?
Ultrasonic transmitters emit high-frequency sound waves (typically 20 kHz to 200 kHz) toward the liquid or solid surface. The transducer then receives the reflected echo and calculates the level based on the time-of-flight of the sound wave.
Basic Formula:
Distance = (Speed of Sound × Time of Flight) / 2`
2. Key Selection Criteria
2.1. Frequency Matters
Frequency | Beam Angle | Application | Pros & Cons |
Low (~20-50 kHz) | Wide (10°-15° | Solids, coarse granules, long range (up to 60m) | + Better for dusty environments – Lower accuracy |
High (~100-200 kHz) | Narrow (3°-7°) | Liquids, short to medium range (up to 15m) | + High accuracy – Sensitive to foam/dust |
2.2 Technical Specifications to Check
Measuring Range | 3m to 60m (select with 20% margin). |
Process Temperature | Standard -40°C to 80°C; high-temp models available. |
Pressure Rating | Typically up to 3 bar (for non-pressurized tanks). |
Output | 4-20mA HART, RS485 Modbus, or proprietary digital protocols. |
Accuracy | ±0.25% to ±0.5% of full scale (higher for advanced models). |
Beam Angle | Critical for avoiding tank obstructions. |
2.3. Environmental & Process Conditions
Avoid in | vacuum or high-pressure tanks (sound waves don’t propagate well). |
Not suitable for | heavy foam, steam, or significant dust (consider radar instead). |
Ideal for | Water, chemicals, fuels, plastics, granules, and non-foaming liquids |
3. Installation Tips (Critical for Accuracy!)
Mounting Location | - Keep the transducer away from: - Fill streams or agitators (causes false echoes). - Tank walls(mount at least 300mm from walls). - Use a still-pipe for turbulent surfaces or uneven solids. - Ensure the transducer is perpendicular to the material surface. |
Dead Zone | - The dead zone (blind area) is typically 150mm to 600mm from the sensor. - Never install where the level will enter the dead zone. |
Temperature Compensation | - Sound speed changes with temperature and gas composition. - Use models with integrated temperature sensors for automatic compensation. |
4. Configuration & Calibration
Setup Parameters | - Empty Tank Height: Distance from sensor to tank bottom. - Full Tank Height: Set the 4mA and 20mA points accordingly. - Damping: Adjust to stabilize readings in turbulent conditions. |
False Echo Suppression | - Use echo mapping to lock onto the true echo and ignore obstructions (e.g., ladders, heaters). |
Advanced Features | - Pump Control: Enable hysteresis to prevent pump cycling. - Multi-Point Averaging: For uneven surfaces (e.g., solids). |
5. Application-Specific Advice
Application | Challenge | Solution |
Water/Wastewater | Turbulence, foam | Use stilling well, increase damping |
Solids (Silos) | Dust, uneven surface | Use low-frequency sensor, steep installation angle |
Chemical Tanks | Corrosion, vapors | Specify PVDF or PTFE transducer material |
High Temperature | Signal attenuation | Choose high-temp model, reduce range |
6. Maintenance & Troubleshooting
Issue | Possible Cause | Fix |
Erratic Readings | Foam, vapor, or obstruction | Check for buildup, increase damping |
No Signal | Dead zone violation, power loss | Verify level, check wiring |
Inaccurate Reading | Temperature change, coating on sensor | Clean sensor, verify temp compensation |
Weak Echo | Low dielectric material, angled surface | Use a reflector target |
7. Pro Tips
Use a Conduit | Protect cabling from moisture and EMI. |
Grounding | Properly ground the device and shield to avoid electrical noise. |
Regular Cleaning | Schedule cleaning for sensors in dirty or coating applications. |
Verify with a Handheld | Use a portable ultrasonic to validate readings. |
When NOT to Use Ultrasonic | Vacuum or high-pressure vessels. |
Applications with heavy foam or steam. | |
Very aggressive chemicals (unless compatible materials are specified). | |
Where extremely high accuracy is required (e.g., custody transfer). |
By following these guidelines, you can ensure reliable and accurate level measurement with ultrasonic technology.
